Tanks
Pacific Radiator's Quality Tanks
Keep your projects on track with custom tank solutions
“You can trust that we are committed to a higher level of excellence from each individual in the organization. From the smallest to the biggest job from start to finish our customers come first.”
The difference in our tanks is dependability. With our in-house team of expert technicians, we design and manufacture custom solutions for a range of materials and applications. Your equipment specifications come first – we tailor our process to fit the job, deadline included. There’s no easier or more efficient way to get your tank replacement custom-crafted than with the experts at Pacific Radiator.
Choose your precision solution in:
- Brass
- Steel
Pacific Radiator Tanks
Our complete catalogue, at your fingertips.
Search Our Tank Inventory
Enter tank width (e.g., "22", "22 1/4") or model name
Showing 1-7 of 42 results
Click the image above to view enlarged

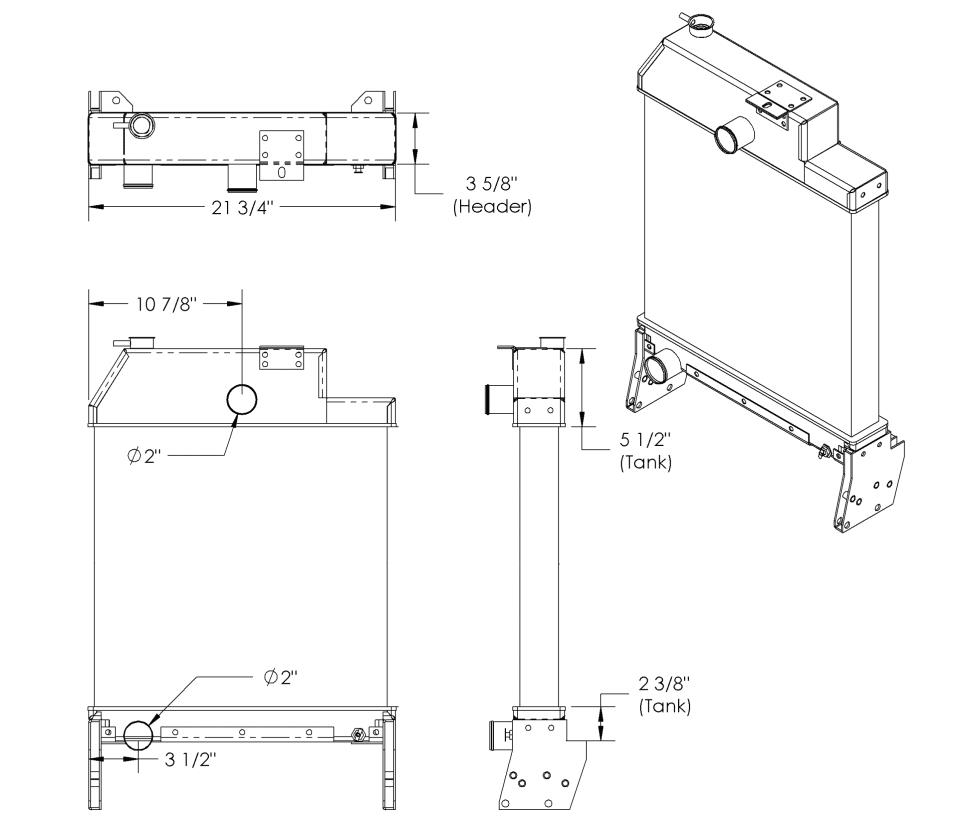

TK BT 047S
3 5/8" x 21 3/4"
Tank – 3 5/8″ x 21 3/4″
- Available for Order
- Manufacturer: John Deere
Click the image above to view enlarged

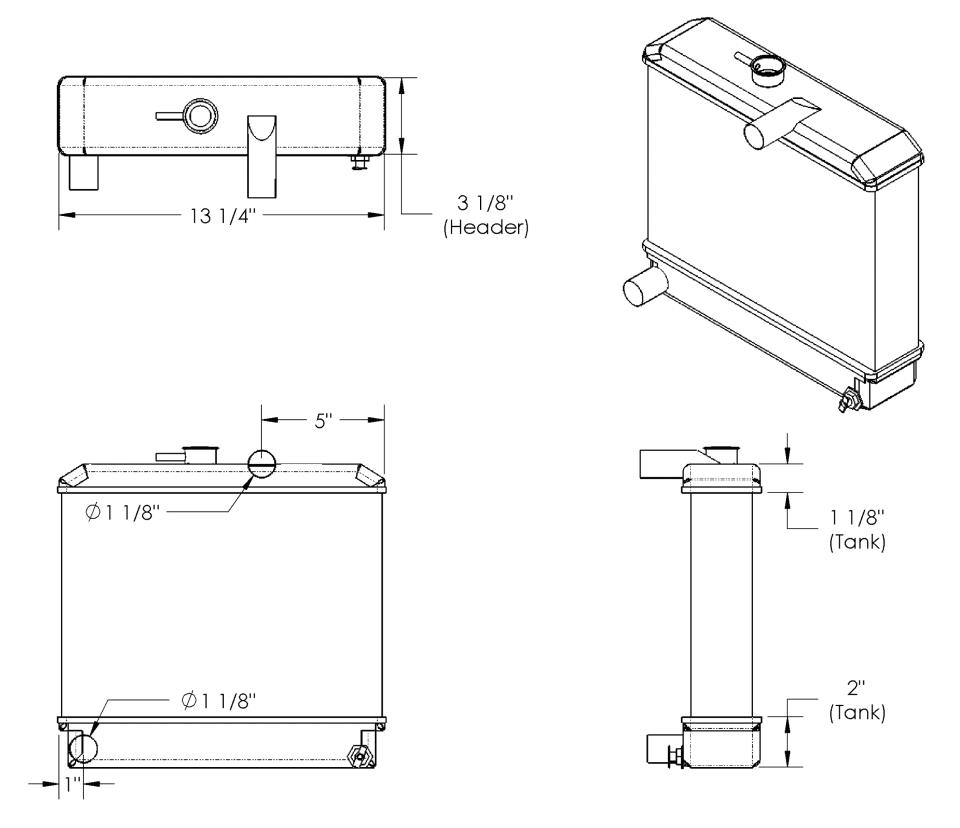

TK BT 048S
3 1/8" x 13 1/4"
Tank – 3 1/8″ x 13 1/4″
- Available for Order
- Manufacturer: John Deere
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| AH LF 22750 | Core | 9 | 13 | 2 1/2 | — | no num. | — | — |
| PC 22749 | Core | 9 | 13 | 2 1/2 | 76 | 1 1/8" CON. | — | — |
Click the image above to view enlarged
TK BT 023S
4" x 23 1/8"
Tank – 4″ x 23 1/8″
- Available for Order
- Manufacturer: John Deere
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| PC 22956 | Core | 22 1/8 | 22 1/4 | 2 1/2 | 47 | 2" CON. | — | — |
Click the image above to view enlarged

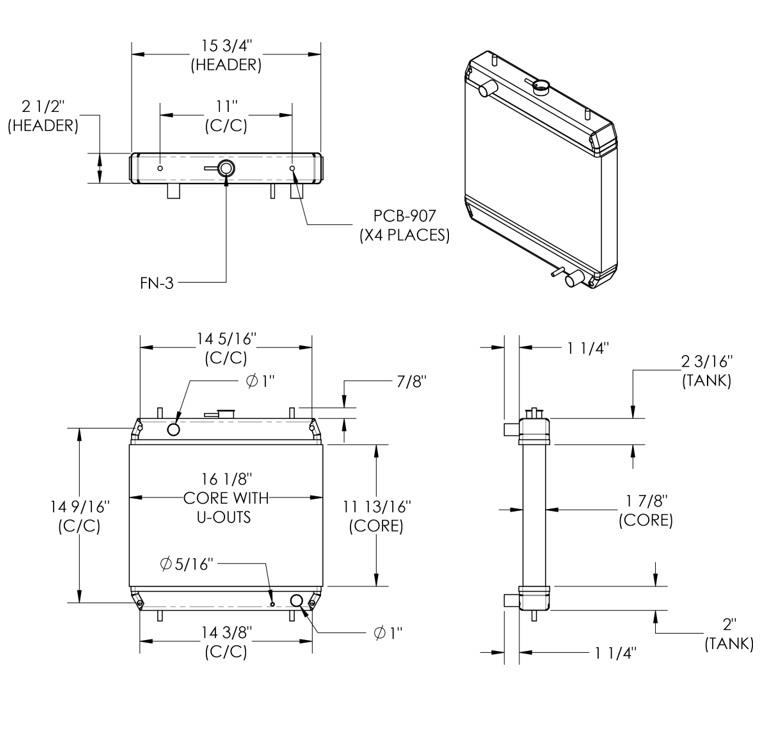

TK 97224
2 1/2" x 15 3/4"
Tank – 2 1/2″ x 15 3/4″
- Available for Order
- Manufacturer: John Deere
Click the image above to view enlarged

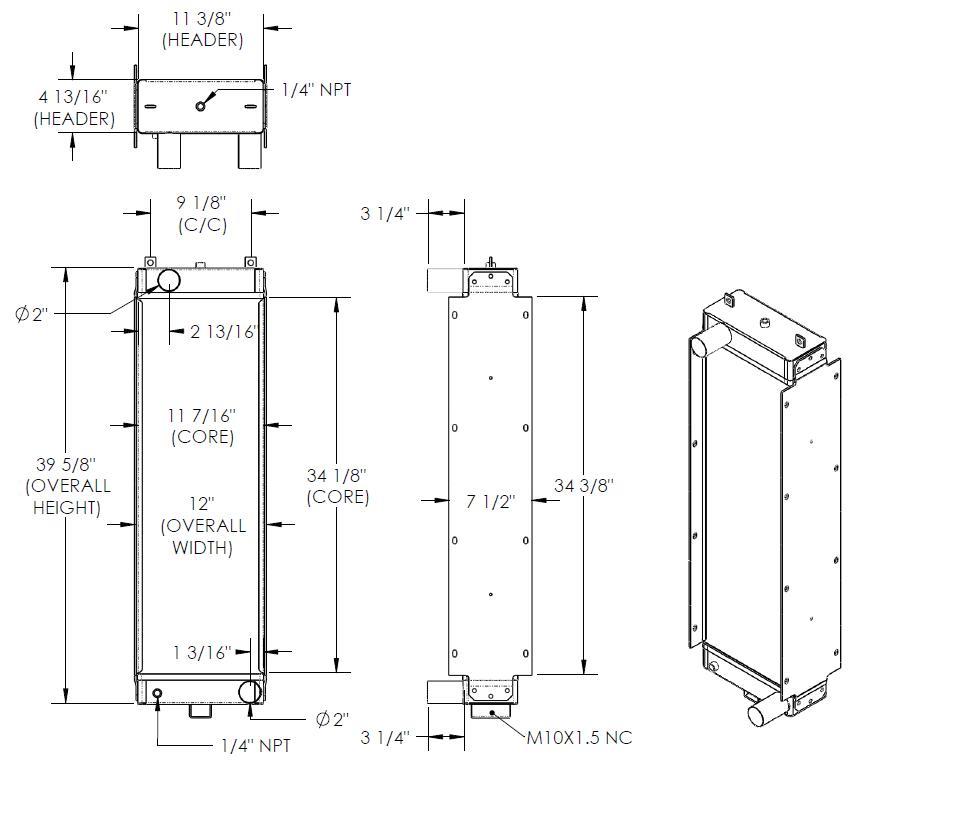

TK 73356
4 13/16" x 11 3/8"
1/2″ DEEP DROP SEAM, 3/8″ DSR HEADERS
0.104″ STEEL TANKS
Tank – 4 13/16″ x 11 3/8″
- Available for Order
- Manufacturer: John Deere
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IH 73355 | Core | 34 1/8 | 11 3/8 | 4 7/16 | — | TK 73356 TOP | — | — |
Click the image above to view enlarged

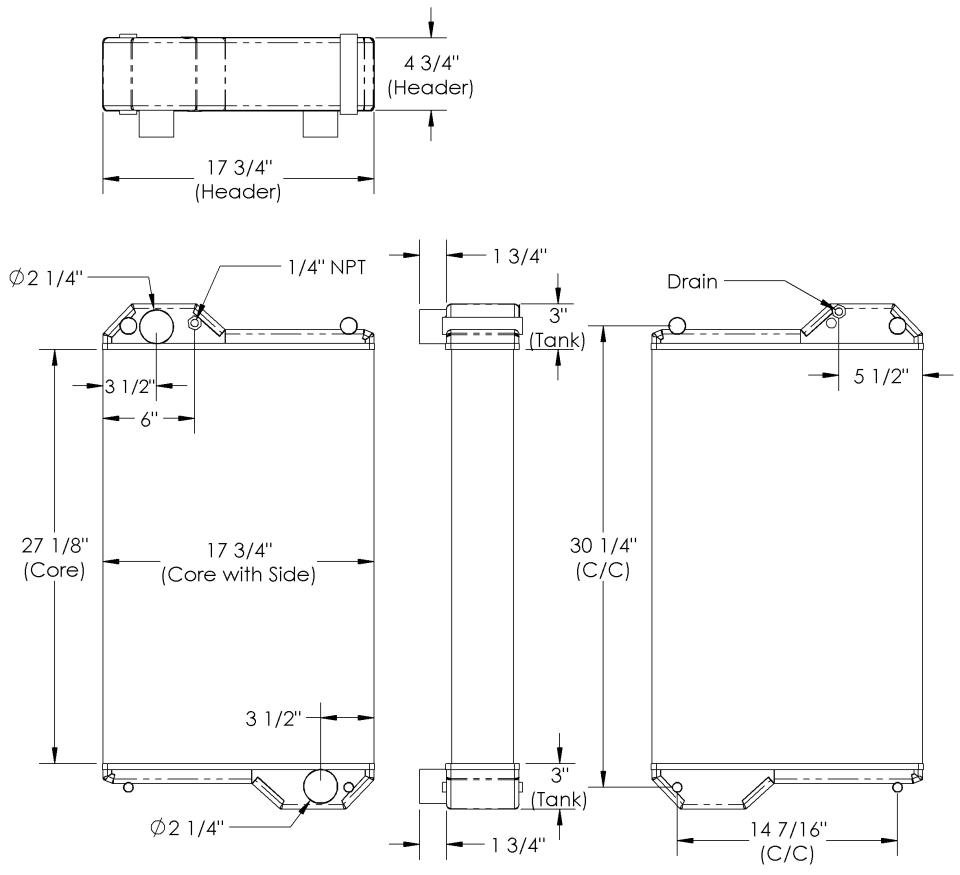

TK 64583
4 3/4" x 17 3/4"
Tank for John Deere.
Tank – 4 3/4″ x 17 3/4″
- Available for Order
- Manufacturer: John Deere
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| INLF 110189 | Core | 27 1/8 | 17 3/4 | 4 | — | TK 64583 Top | — | — |
Click the image above to view enlarged

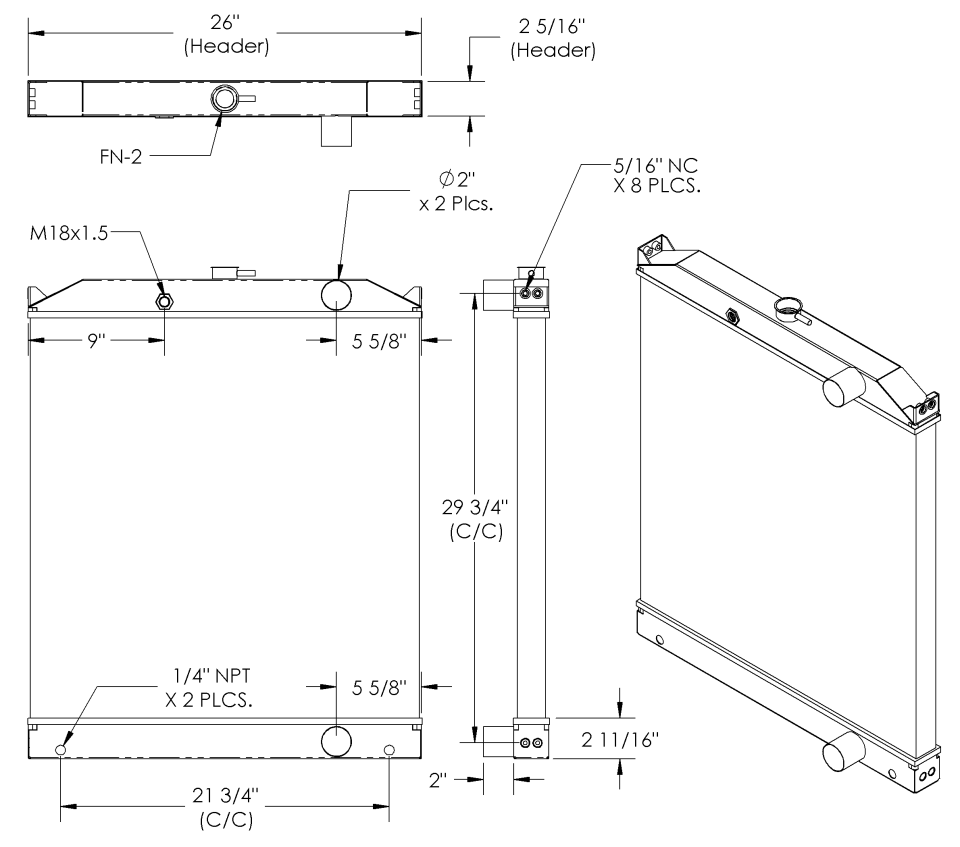

TK 64986
2 5/16" x 26"
Tank – 2 5/16″ x 26″
- Available for Order
- Manufacturer: John Deere
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| LF 64985 | Core | 27 1/4 | 25 3/4 | 1 7/8 | — | TK 64986 Top | — | — |
…
