Pacific Radiator's Quality Tanks
Keep your projects on track with custom tank solutions
“You can trust that we are committed to a higher level of excellence from each individual in the organization. From the smallest to the biggest job from start to finish our customers come first.”
The difference in our tanks is dependability. With our in-house team of expert technicians, we design and manufacture custom solutions for a range of materials and applications. Your equipment specifications come first – we tailor our process to fit the job, deadline included. There’s no easier or more efficient way to get your tank replacement custom-crafted than with the experts at Pacific Radiator.
Choose your precision solution in:
- Brass
- Steel
Pacific Radiator Tanks
Our complete catalogue, at your fingertips.
Search Our Tank Inventory
Enter tank width (e.g., "22", "22 1/4") or model name
Showing 1-7 of 31 results
Click the image above to view enlarged

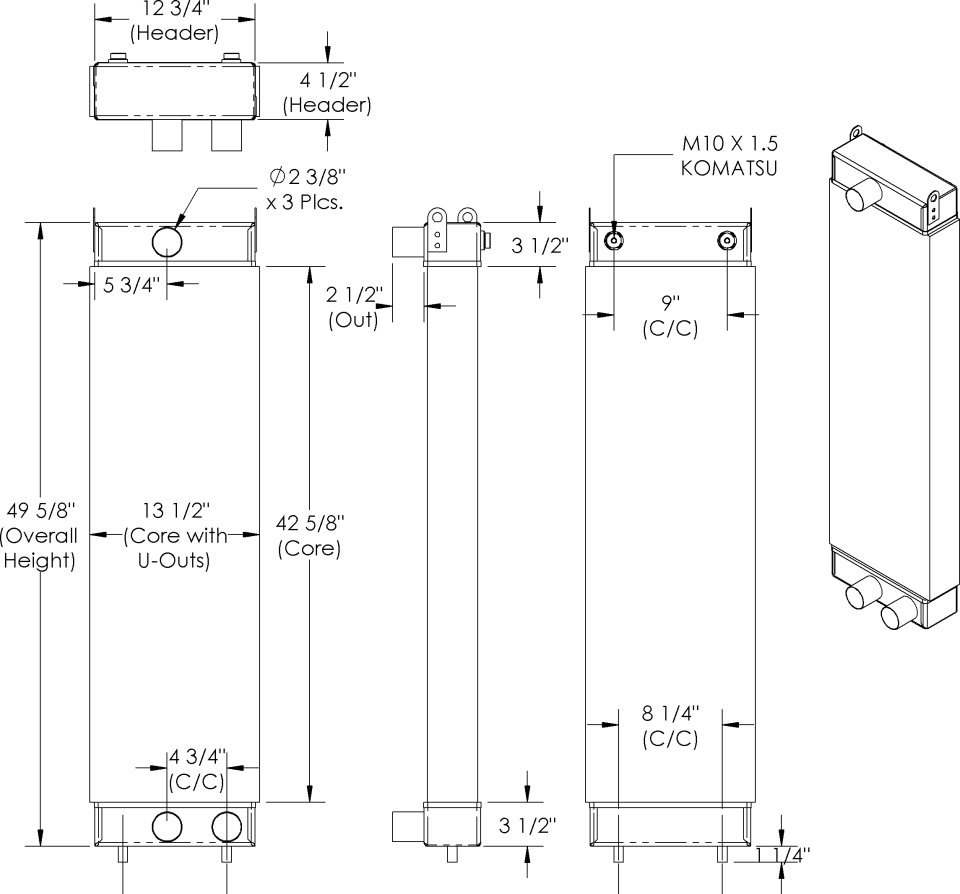

TK 98992
4 1/2" x 12 3/4"
TRAD# 1381 646 8010
Tank – 4 1/2″ x 12 3/4″
- Available for Order
- Manufacturer: Komatsu
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IH 108863 | Core | 42 5/8 | 13 1/2 | 3 5/8 | TK 91622 | 2 3/8" CON. | — | — |
Click the image above to view enlarged
TK 91622
4 1/2" x 12 3/4"
TRAD# 1381 645 8020
Tank – 4 1/2″ x 12 3/4″
- Available for Order
- Manufacturer: Komatsu
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| PC 1396 | Core | 42 5/8 | 13 1/2 | 3 5/8 | — | TK 91622 TOP | — | — |
Click the image above to view enlarged

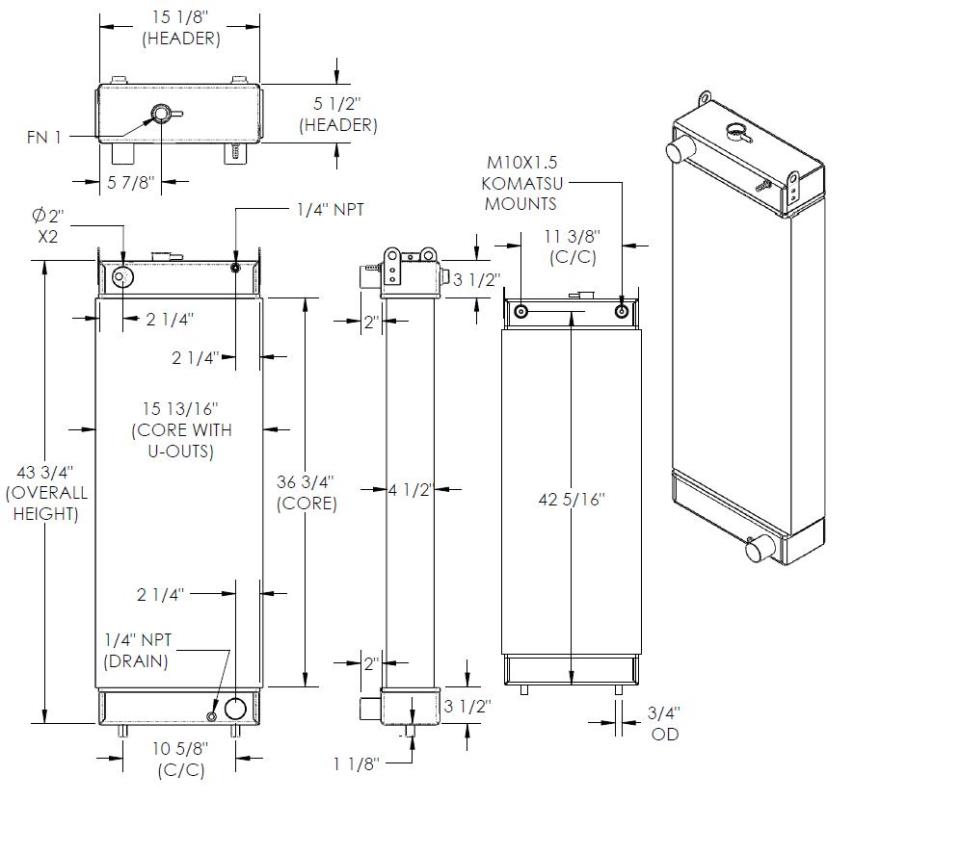

TK 86920
5 1/2" x 15 1/8"
Tank – 5 1/2″ x 15 1/8″
- Available for Order
- Manufacturer: Komatsu
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| AT 86919 | Core | 36 3/4 | 15 13/16 | 4 1/2 | — | TK 86920 TOP | — | — |
Click the image above to view enlarged

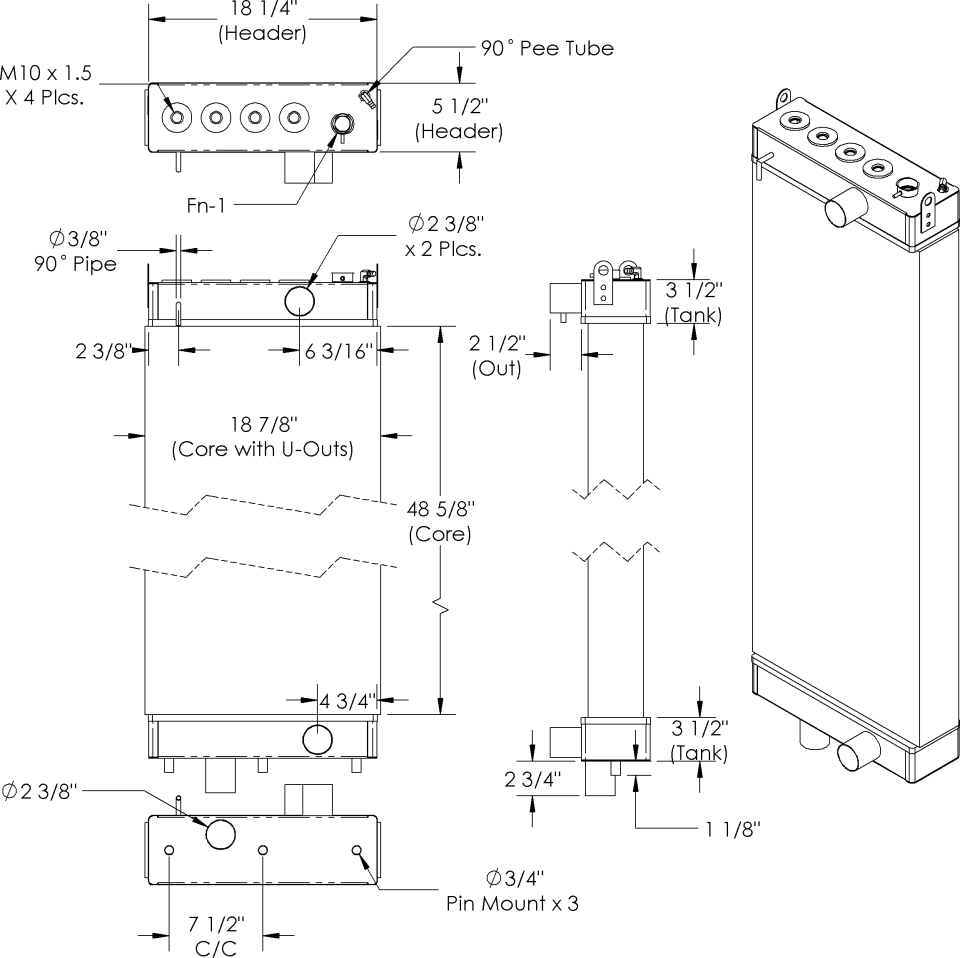

TK 85873
5 1/2" x 18 1/4"
TRAD # 1151-A77-8010
1/2″ Deep Drop Seam
0.075″ CRS Tank
3/8″ DSR Header
Tank – 5 1/2″ x 18 1/4″
- Available for Order
- Manufacturer: Komatsu
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IHLF 100984 | Core | 48 5/8 | 18 7/8 | 4 7/16 | TK 85873 | 2 3/8" Conn. | — | — |
Click the image above to view enlarged

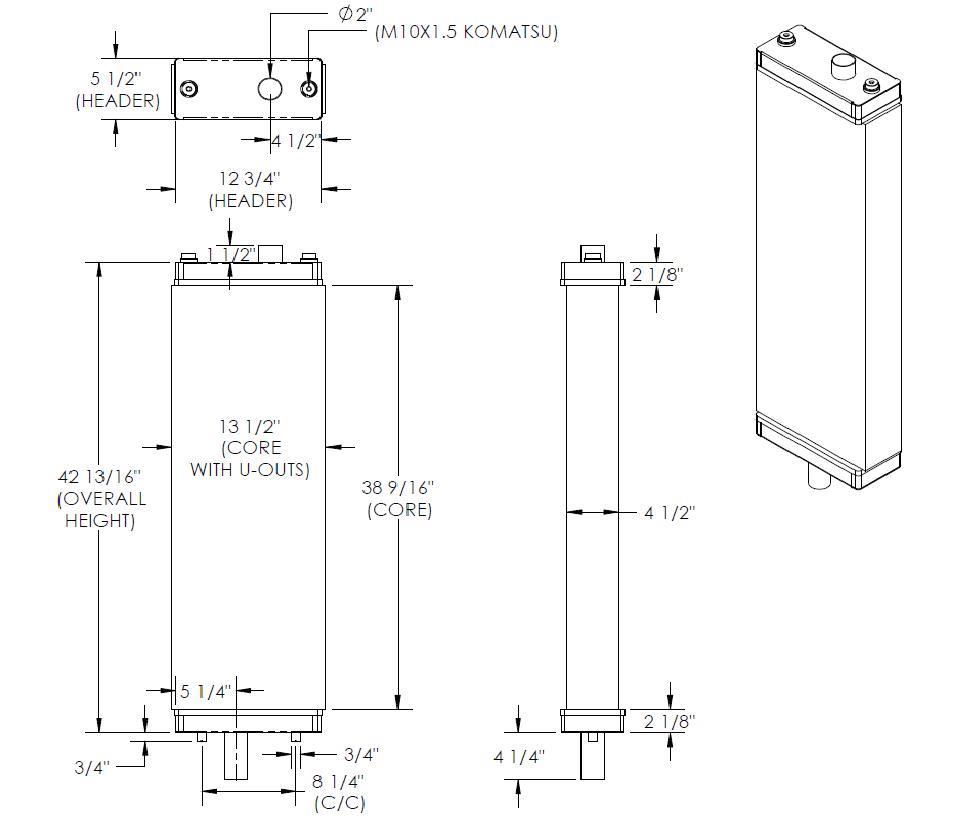

TK 86658
5 1/2" x 12 3/4"
1/2″ DEEP DROP SEAM, 3/8″ DSR HEADERS
.075″ STEEL TANKS
Tank – 5 1/2″ x 12 3/4″
- Available for Order
- Manufacturer: Komatsu
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| CILF 86657 | Core | 38 9/16 | 13 1/2 | 4 1/2 | — | TK 86658 TOP 2" OD | — | — |
Click the image above to view enlarged

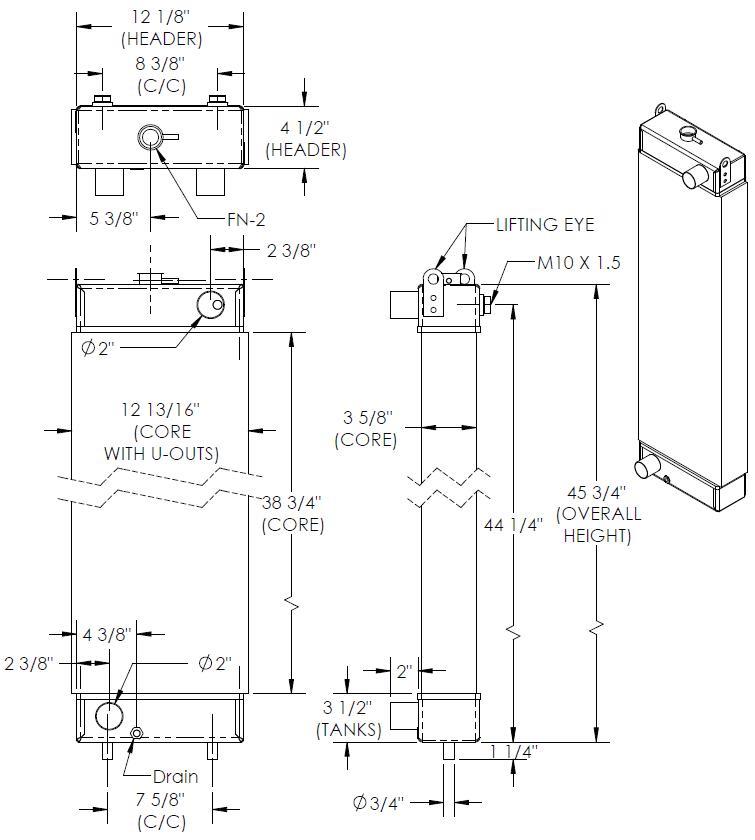

TK 86698
4 1/2" x 12 1/8"
Tank – 4 1/2″ x 12 1/8″
- Available for Order
- Manufacturer: Komatsu
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IH 86953 | Core | 38 3/4 | 12 13/16 | 3 5/8 | — | TK 86698 TOP | — | — |
Click the image above to view enlarged

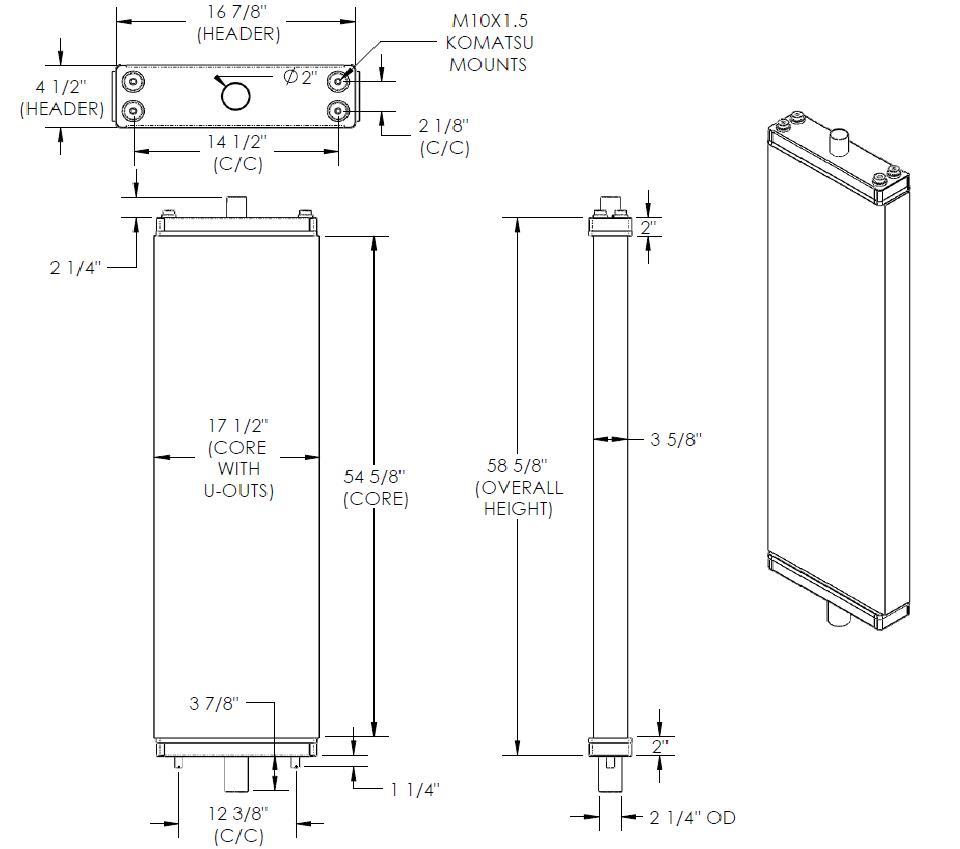

TK 83312
4 1/2" x 16 7/8"
1/2″ DEEP DROP SEAM, 3/8″ DSR HEADERS
.075″ STEEL TANKS
Tank – 4 1/2″ x 16 7/8″
- Available for Order
- Manufacturer: Komatsu
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IHLF 86952 | Core | 54 5/8 | 17 1/2 | 3 5/8 | — | TK 83312 TOP | — | — |
…
