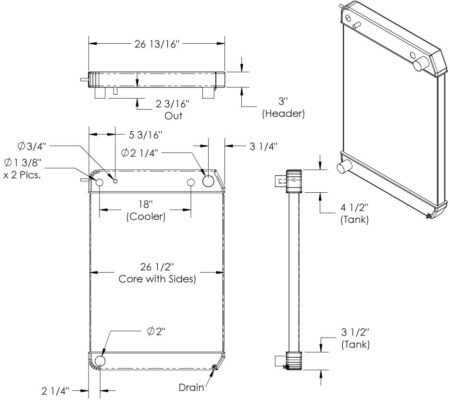

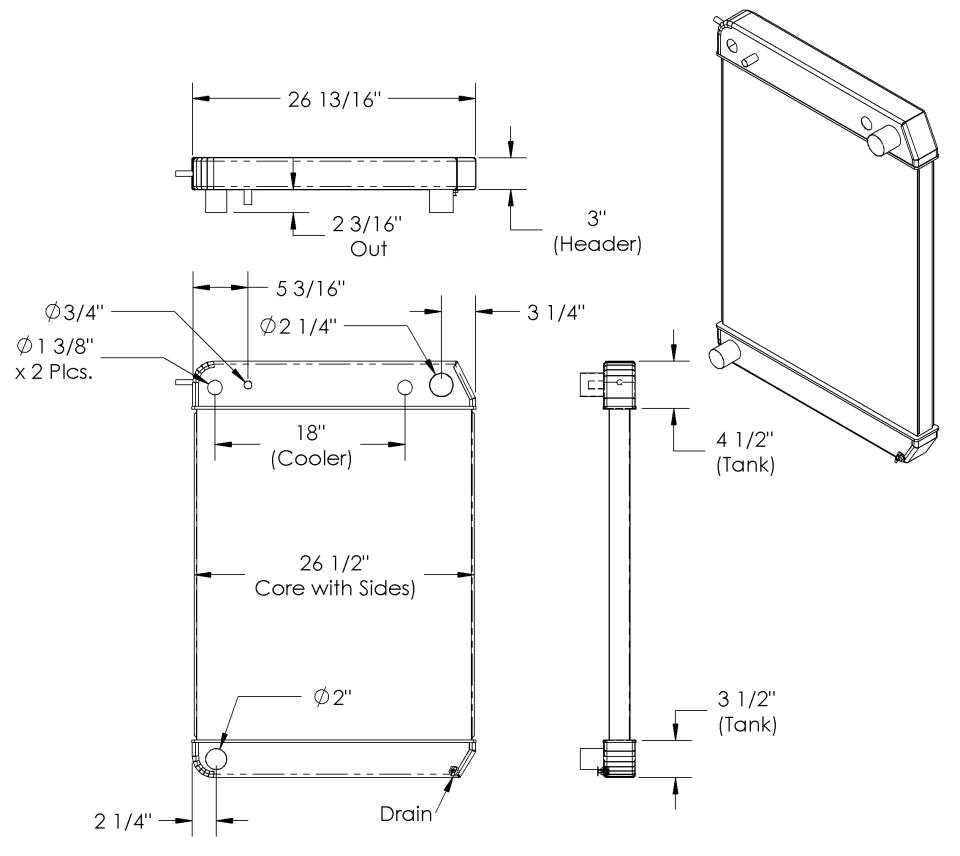

Radiator assembly diagram with measurements.
Click the image above to view enlarged
BT 037S
3" x 26 13/16"
  • Available for Order
  • Manufacturer: GMC
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
PC 33780 Core 35 3/8 26 1/2 2 42 2 1/4" CON. — —
PC 9026 Core 31 3/8 26 1/2 2 11 2 1/4 " CON. — —
PC 9037 Core 31 3/8 26 1/2 2 1/2 42 2 1/4" CON. — —
