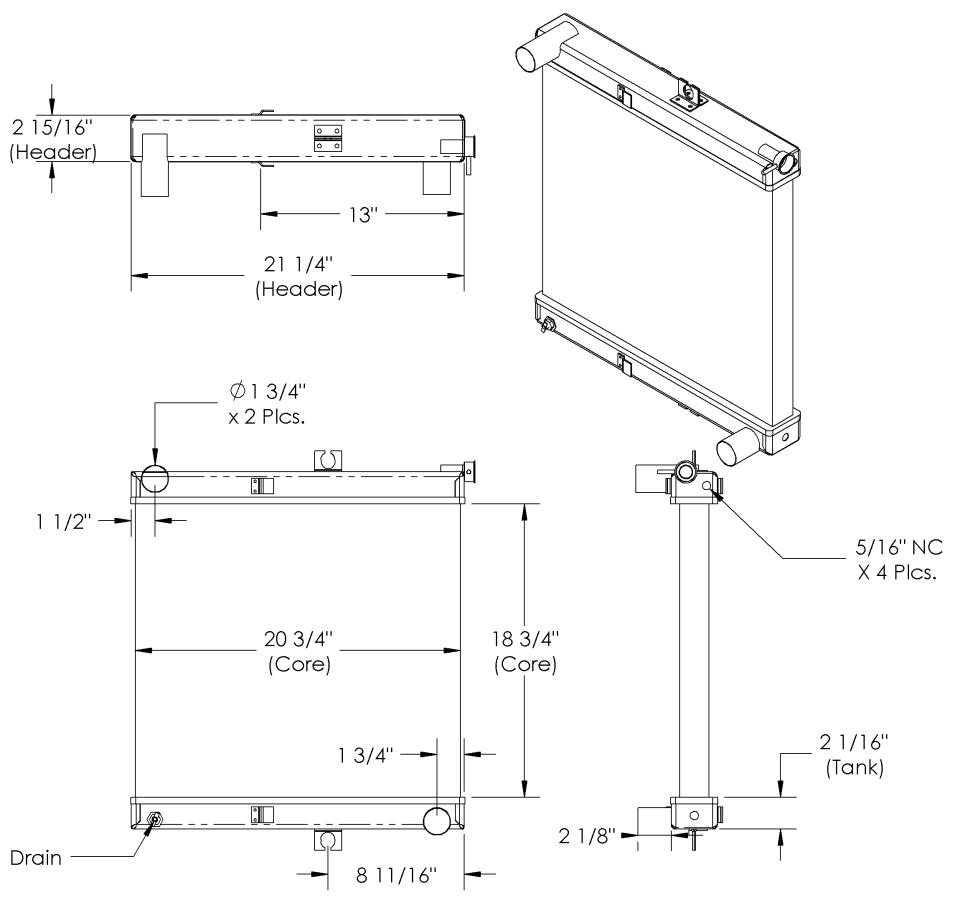

Radiator assembly technical drawing with detailed dimensions.
Click the image above to view enlarged
TK 22689
2 15/16" x 21 1/4"
  • Available for Order
  • Manufacturer: Caterpillar
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
IN BR 22683 Core 18 3/4 20 3/4 1 7/8 TK 22689 1 3/4" CON. — —
LF 27268 Core 18 3/4 20 3/4 1 7/8 TK 22689 1 3/4" CON. — —
