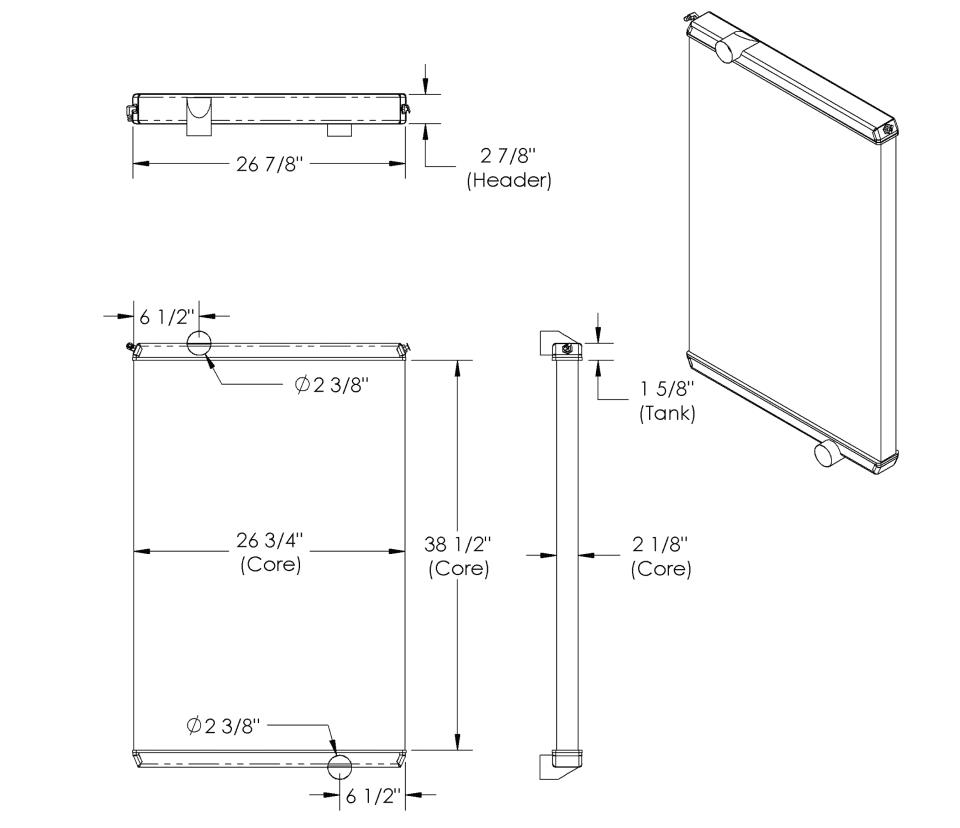

Technical radiator blueprint with measurements and dimensions.
Click the image above to view enlarged
TK 23282
2 7/8" x 26 7/8"
  • Available for Order
  • Manufacturer: Volvo / White
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
FE LF 23283 Core 38 1/2 26 3/4 2 1/8 — no num. — —
