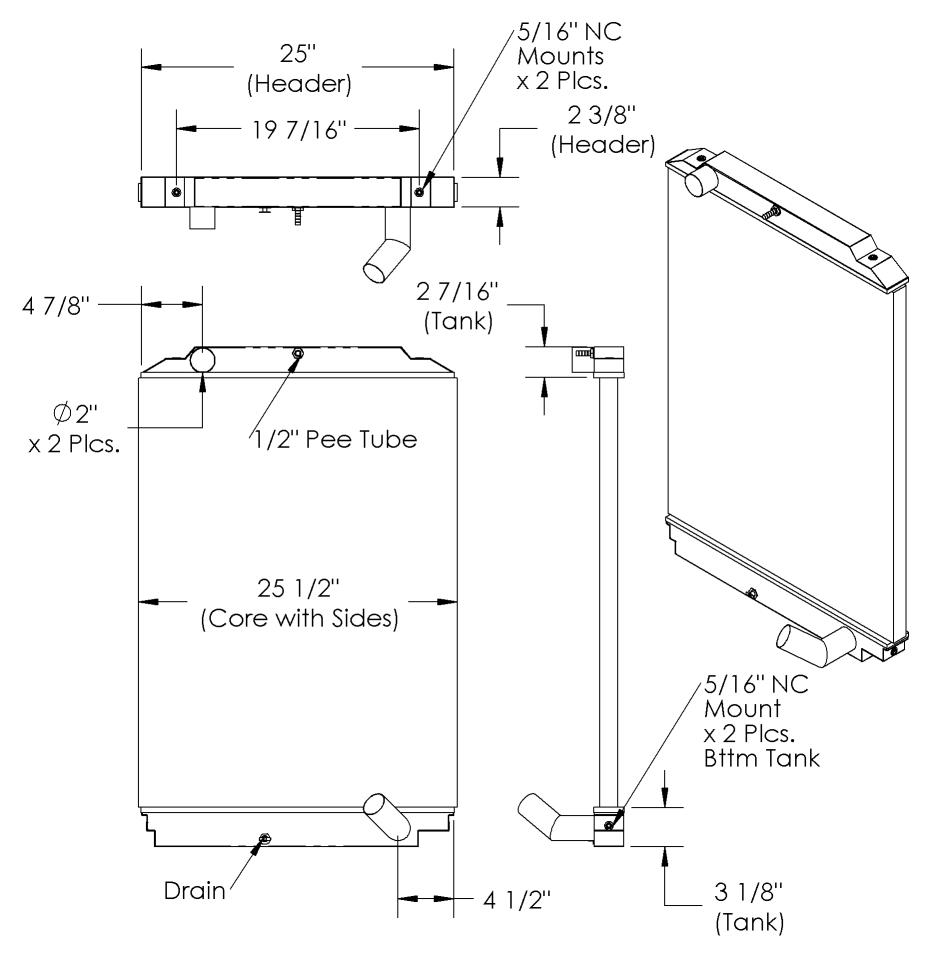

Technical drawing of automotive radiator dimensions.
Click the image above to view enlarged
TK 25514
2 3/8" x 25"
  • Available for Order
  • Manufacturer: GMC
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
IH LF25513 Core 34 3/8 25 1/2 1 13/16 TK 25514 2" CON. — —
TQLF 34721 Core 34 3/8 25 1/2 1 5/8 TK 25514 2" CON. — —
