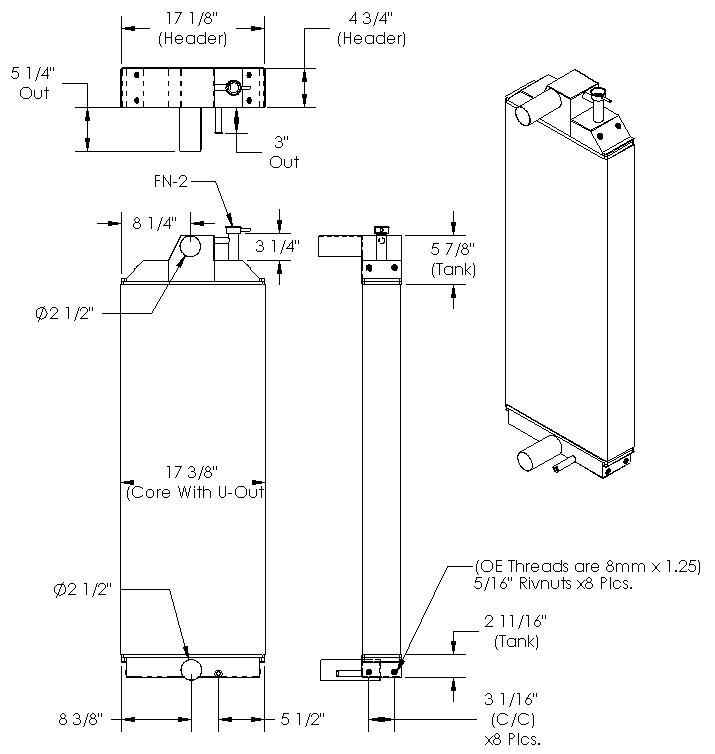

Technical drawing of radiator with dimensions
Click the image above to view enlarged
TK 28263
4 3/4" x 17 1/8"

1/2″ DEEP DROP SEAM HEADER

  • Available for Order
  • Manufacturer: Caterpillar
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
AT 36967 Core 44 3/8 17 3/8 4 1/2 TK 28263 2 1/2" CON. — —
IHLF 28262 Core 44 3/8 17 3/8 4 1/2 TK 28263 2 1/2" CON. — —
