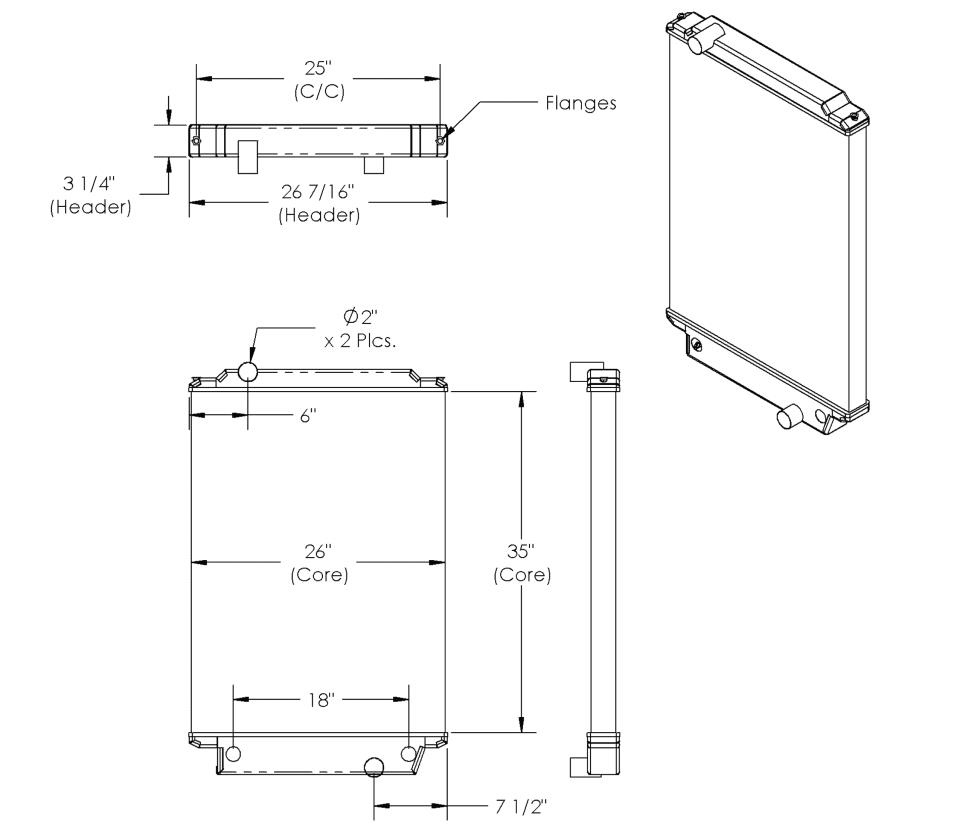

Technical drawing of a radiator with measurements.
Click the image above to view enlarged
TK 28264
3 1/4" x 26 7/16"
  • Available for Order
  • Manufacturer: Freightliner, Motorhome / Bus, Volvo / White
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
IL LF9088 Core 35 26 2 3/4 — TK 27985 — —
LF 72825 Core 25 26 2 1/2 — TK 27985 — —
LF 9088 Core 35 26 2 1/2 — TK 27985 — —
TQLF 32665 Core 38 26 2 1/2 — TK 27985 — —
