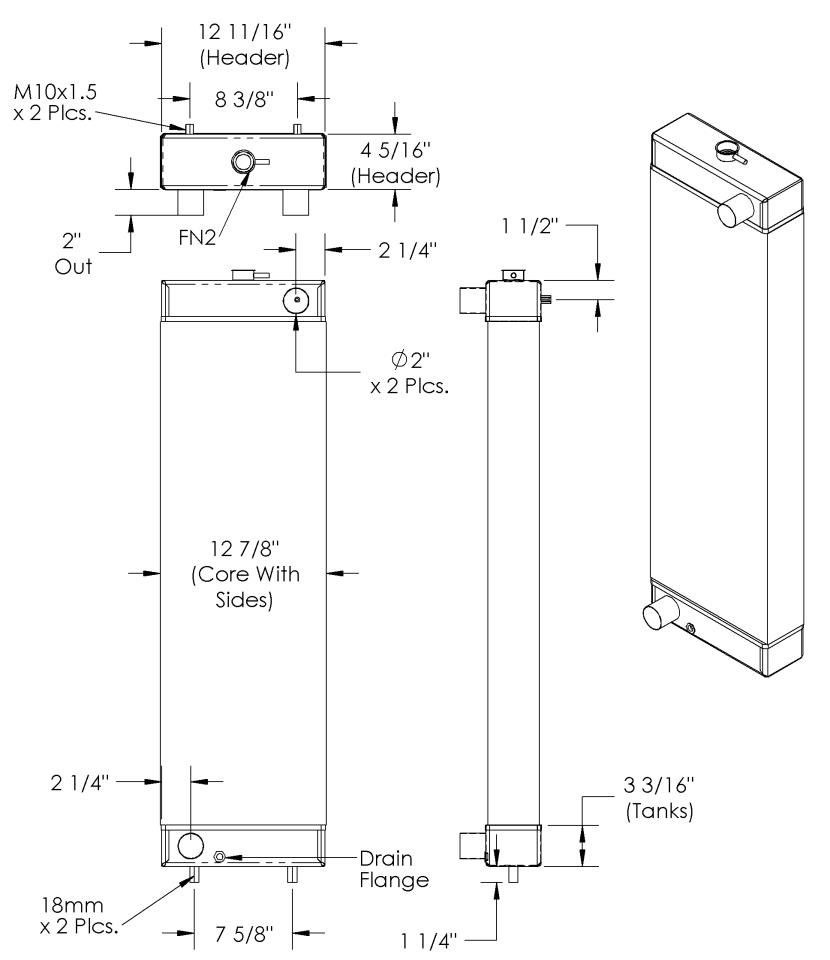

Technical radiator assembly diagram with labeled measurements.
Click the image above to view enlarged
TK 32471
4 5/16" x 12 11/16"

Width of 12 7/8″ includes u-in/u-out side channels

  • Available for Order
  • Manufacturer: Komatsu
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
IN 32470 Core 39 1/8 12 7/8 4 — TK 32471 — —
IN 52102 Core 36 5/8 12 7/8 4 — TK 32471 — —
