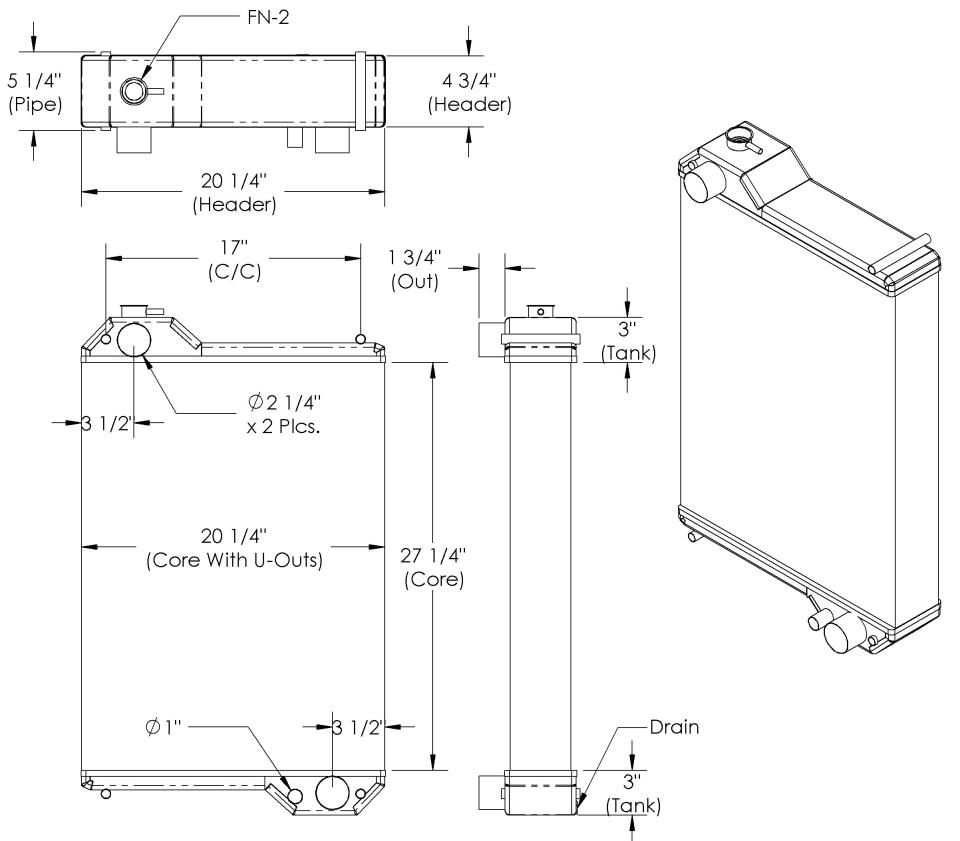

Radiator technical drawing with measurements and specifications.
Click the image above to view enlarged
TK 51322
4 3/4" x 20 1/4"
  • Available for Order
  • Manufacturer: John Deere
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
DHLF 51321 Core 27 1/4 20 1/4 4 1/16 — TK 51322 Top — —
