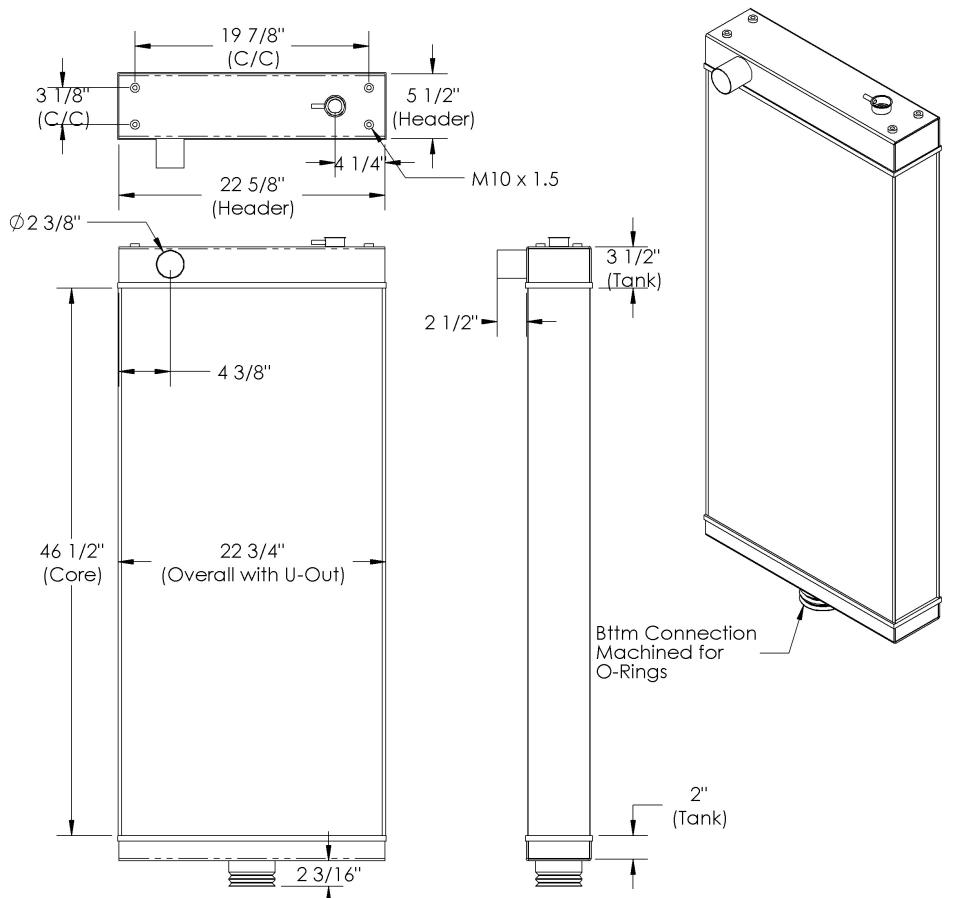

Technical diagram of a radiator with measurements.
Click the image above to view enlarged
Tk 56912
5 1/2" x 22 5/8"

TK 56911 – Left Version

  • Available for Order
  • Manufacturer: Komatsu
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
DH 56910 Core 46 1/2 22 3/4 5 5/16 — 2 3/8" CONN. — —
IFLF 65046 Core 46 1/2 22 3/4 5 5/16 — 2 3/8" CONN. — —
