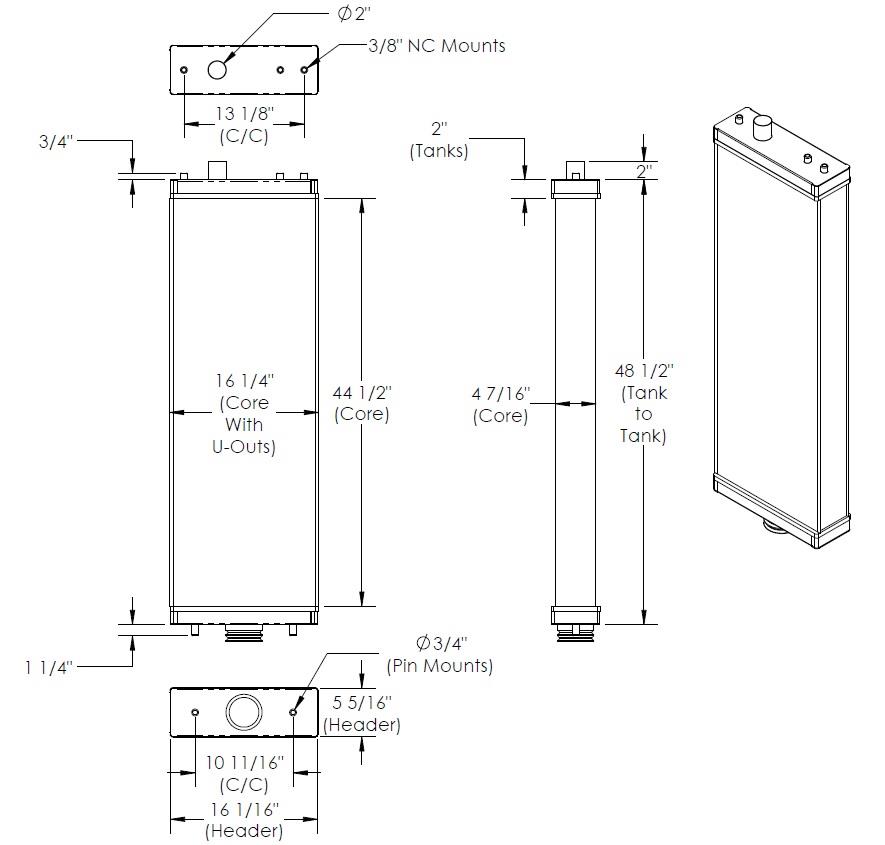

Radiator technical drawing with detailed measurements.
Click the image above to view enlarged
TK 79103
5 5/16" x 16 1/16"

1/2″ DEEP DROP SEAM HEADER

3/8″ DSR

0.075 STEEL TANKS

  • Available for Order
  • Manufacturer: Komatsu
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
AH LF 93065 Core 44 1/2 16 1/4 4 7/16 — TK 79103 TOP — —
