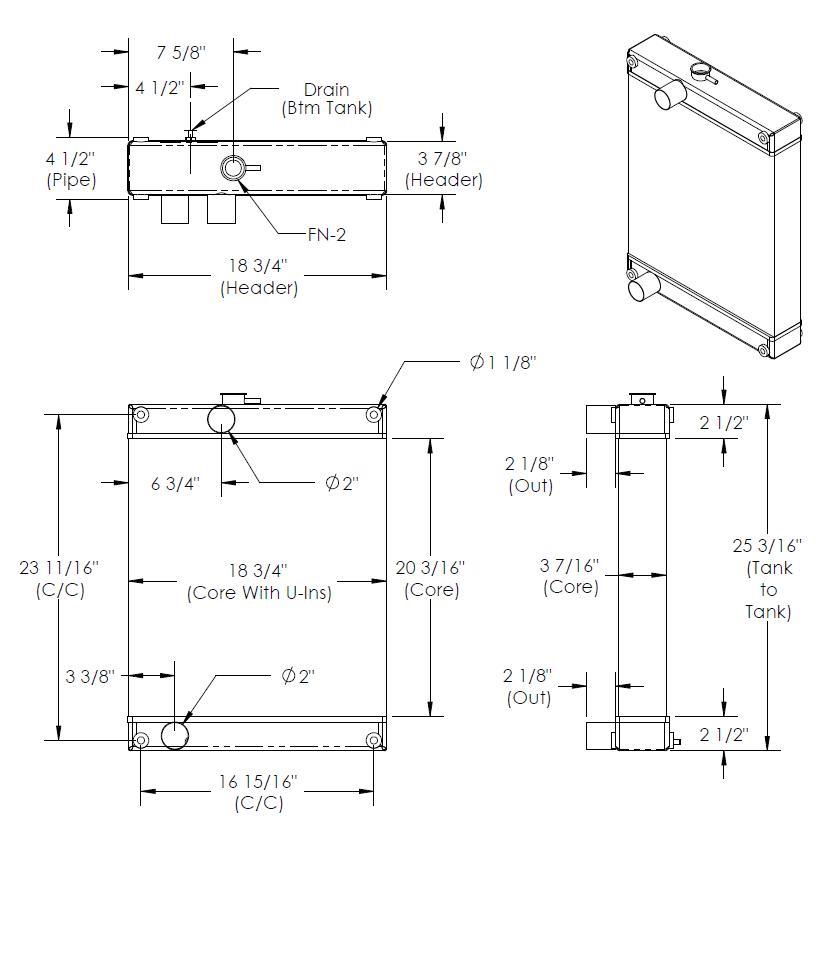

Radiator engineering diagram with detailed measurements.
Click the image above to view enlarged
TK 79433
3 7/8" x 18 3/4"
  • Available for Order
  • Manufacturer: N/A
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
AT 79432 Core 20 3/16 18 3/4 3 7/16 — TK 79433 TOP — —
