Tanks
Pacific Radiator's Quality Tanks
Keep your projects on track with custom tank solutions
“You can trust that we are committed to a higher level of excellence from each individual in the organization. From the smallest to the biggest job from start to finish our customers come first.”
The difference in our tanks is dependability. With our in-house team of expert technicians, we design and manufacture custom solutions for a range of materials and applications. Your equipment specifications come first – we tailor our process to fit the job, deadline included. There’s no easier or more efficient way to get your tank replacement custom-crafted than with the experts at Pacific Radiator.
Choose your precision solution in:
- Brass
- Steel
Pacific Radiator Tanks
Our complete catalogue, at your fingertips.
Search Our Tank Inventory
Enter tank width (e.g., "22", "22 1/4") or model name
Showing 1-7 of 32 results
Click the image above to view enlarged

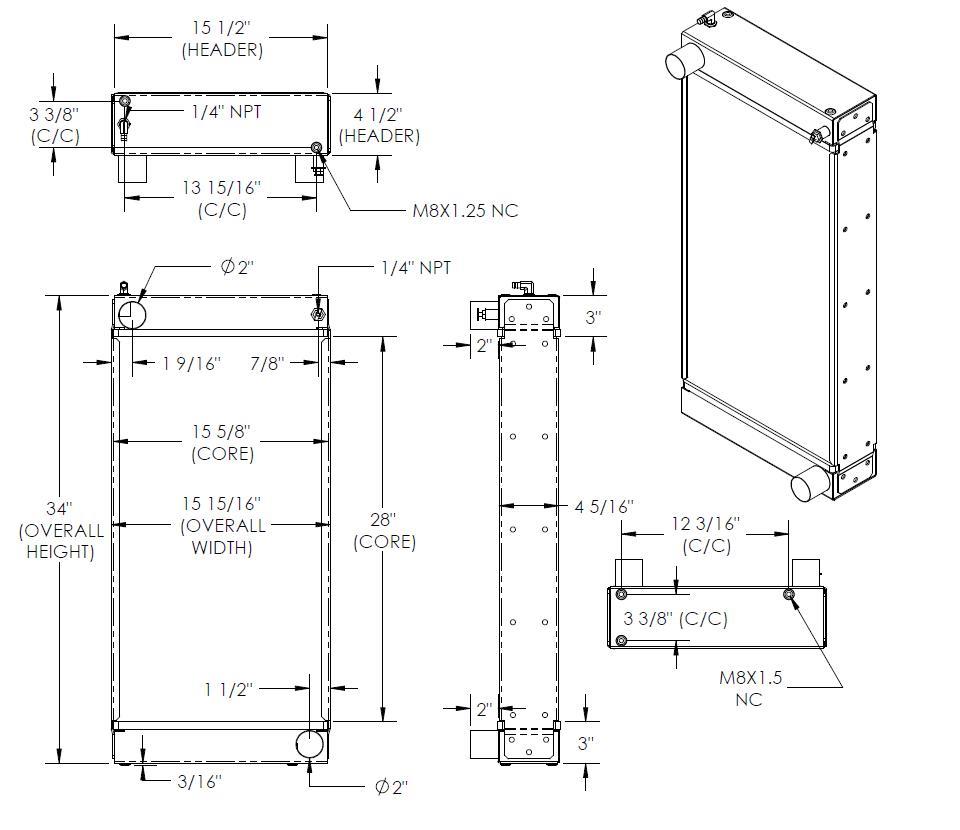

TK 85498
4 1/2" x 15 1/2"
1/2″ Deep Drop Seam Headers
Tank – 4 1/2″ x 15 1/2″
- Available for Order
- Manufacturer: Miscellaneous
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| AT 85497 | Core | 28 | 15 5/8 | 4 | — | TK 85498 TOP | — | — |
Click the image above to view enlarged

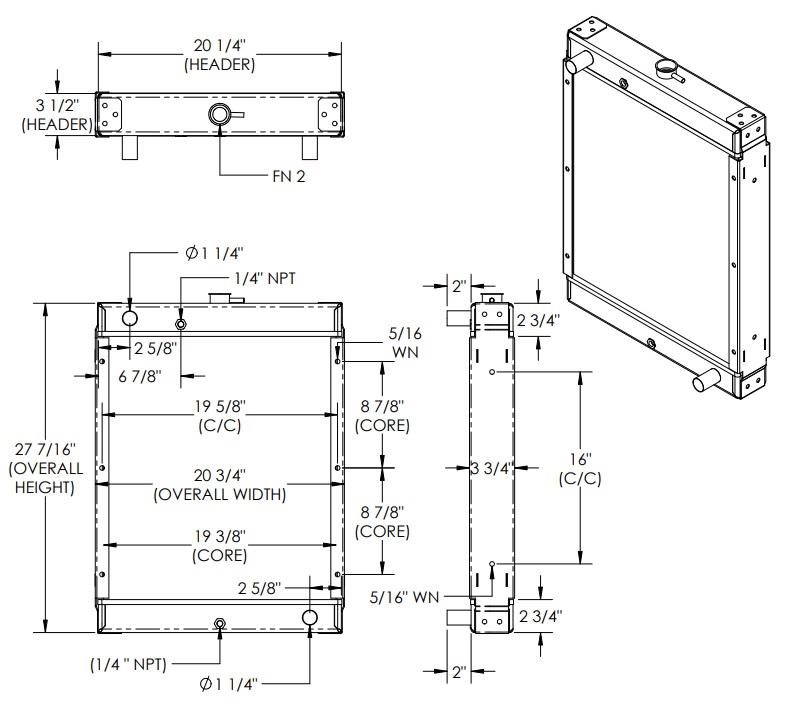

TK 77902
3 1/2" x 20 1/4"
Tank
Tank – 3 1/2″ x 20 1/4″
- Available for Order
- Manufacturer: Miscellaneous
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| PC 77898 | Core | 21 15/16 | 19 3/8 | 2 1/2 | TK 77902 | 1.25" OD | — | — |
Click the image above to view enlarged

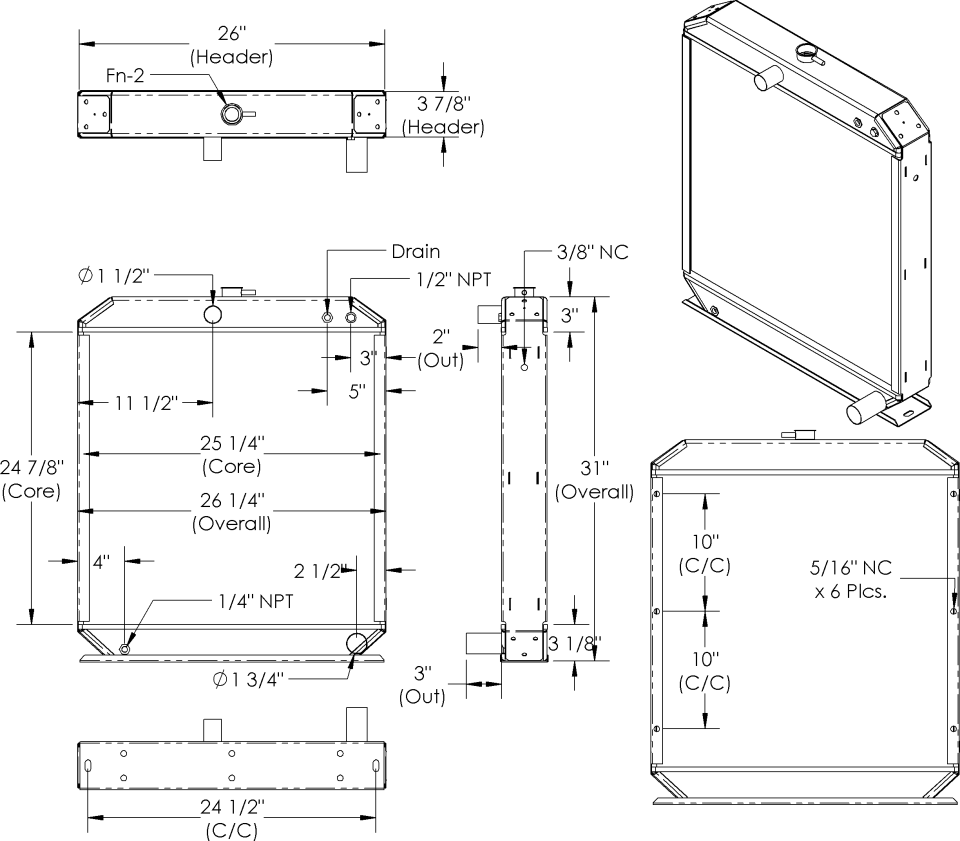

TK 74253
3 7/8" x 26"
Tank with dimensions 3 7/8″ x 26″.
Tank – 3 7/8″ x 26″
- Available for Order
- Manufacturer: Miscellaneous
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| ACT 105431 | Core | 24 7/8 | 25 1/4 | 2 1/2 | — | TK 74253 Top | — | — |
Click the image above to view enlarged

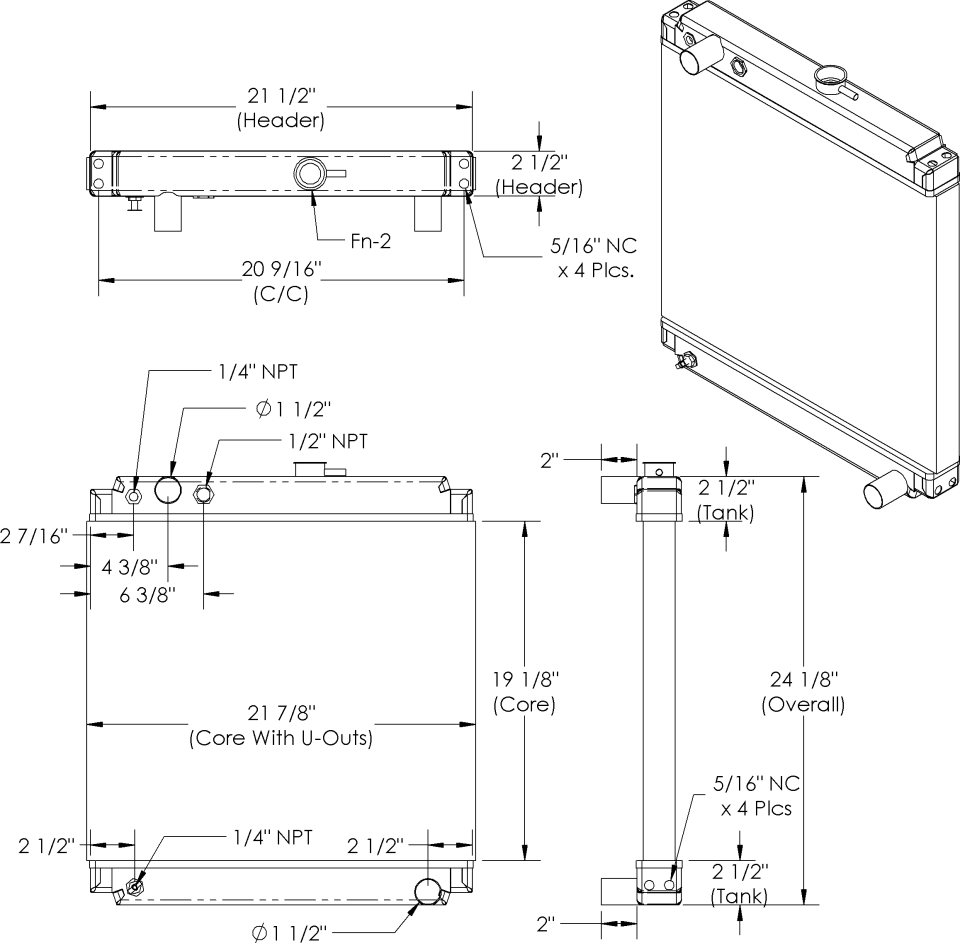

TK 70617
2 1/2" x 21 1/2"
Tank – 2 1/2″ x 21 1/2″
- Available for Order
- Manufacturer: Miscellaneous
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IHLF 79698 | Core | 19 1/8 | 21 7/8 | 1 13/16 | TK 70617 | 1 1/2" CON. | — | — |
| AT 103227 | Core | 19 1/8 | 21 7/8 | 1 13/16 | TK 70617 | 1 1/2" CON. | — | — |
Click the image above to view enlarged

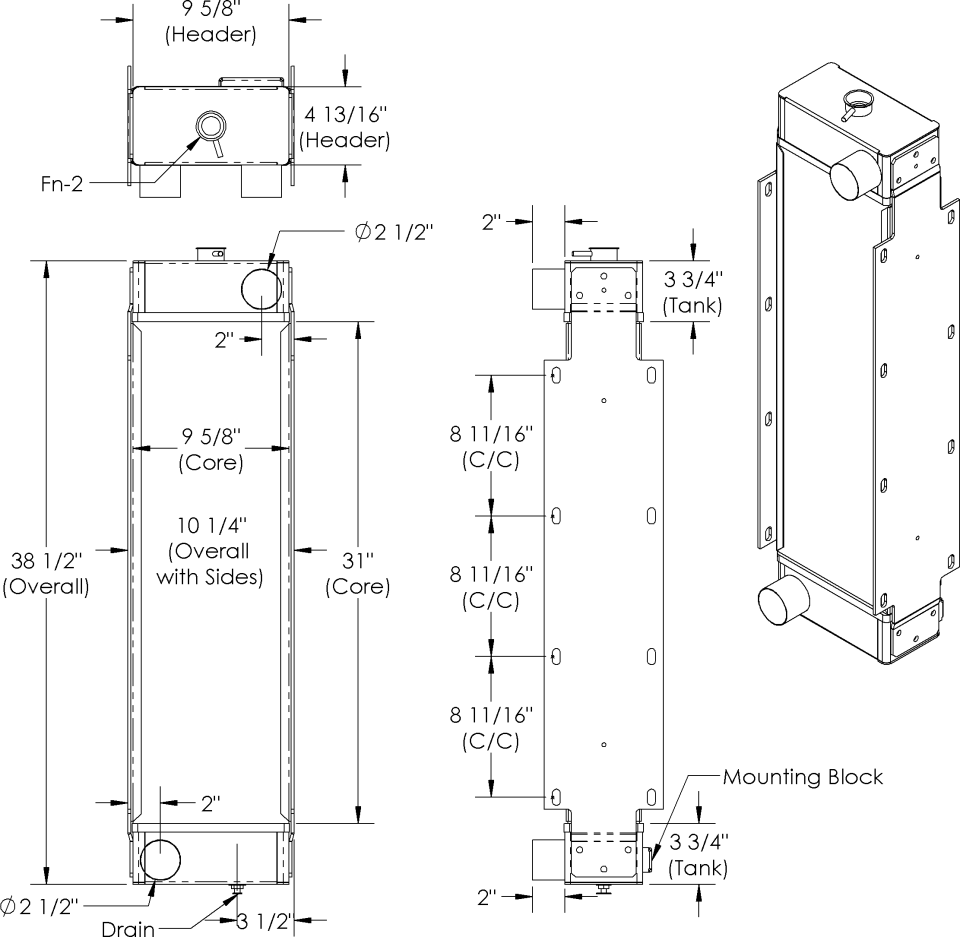

TK 60169
4 13/16" x 9 5/8"
0.075″ Steel Tanks
1/2″ Deep Drop Header
Tank – 4 13/16″ x 9 5/8″
- Available for Order
- Manufacturer: Miscellaneous
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IHBRLF 85926 | Core | 31 | 9 5/8 | 4 7/16 | — | TK 60169 Top | — | — |
Click the image above to view enlarged

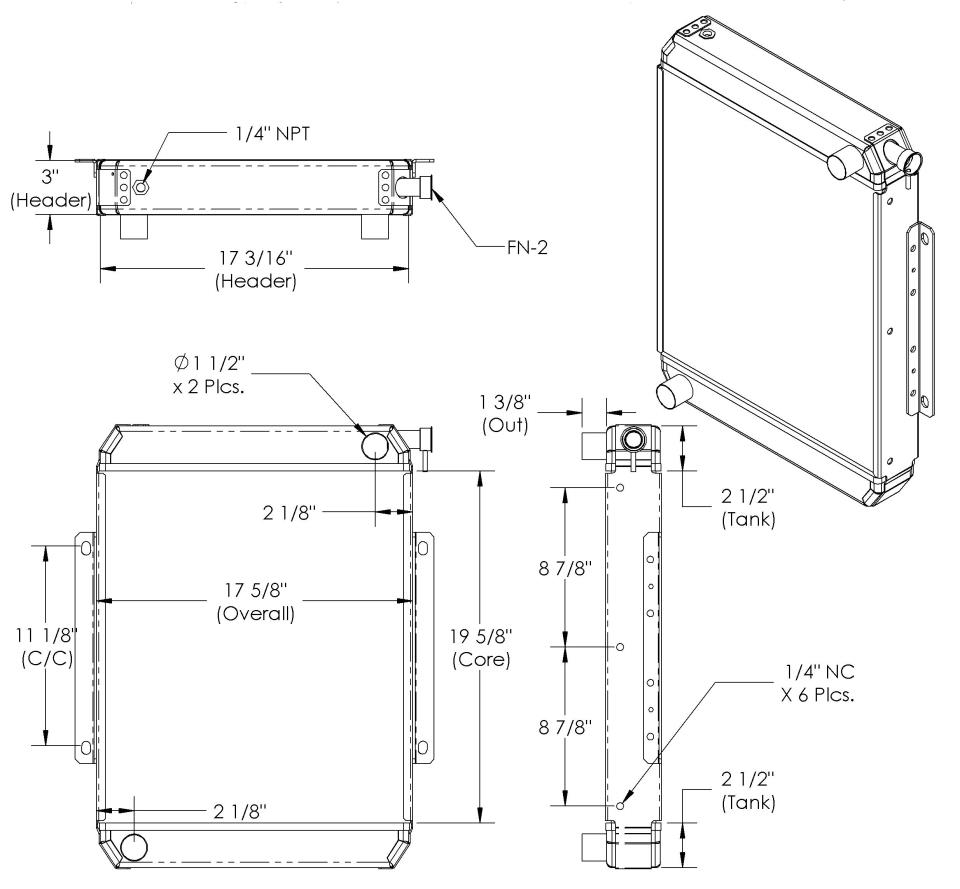

TK 52026
3" x 17 3/16"
Tank – 3″ x 17 3/16″
- Available for Order
- Manufacturer: Miscellaneous
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| PC 52028 | Core | 19 5/8 | 17 3/8 | 2 1/2 | — | 1 1/2" CONN. | — | — |
Click the image above to view enlarged

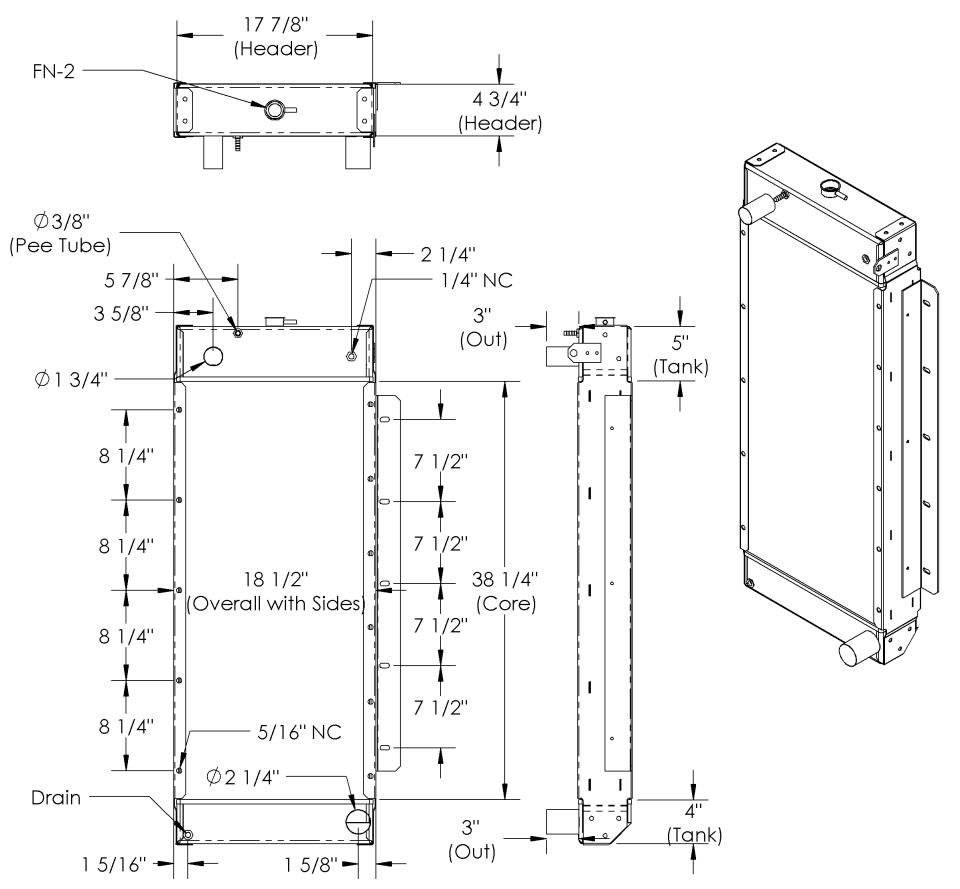

TK 52389
4 3/4" x 17 7/8"
Tank – 4 3/4″ x 17 7/8″
- Available for Order
- Manufacturer: Miscellaneous
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| AH 52390 | Core | 38 1/4 | 17 1/2 | 4 7/16 | — | TK 52389 Top | — | — |
…
Manufacturers? We’ve got you covered.
Get powerful cooling package and radiator replacements for these premier manufacturers:
