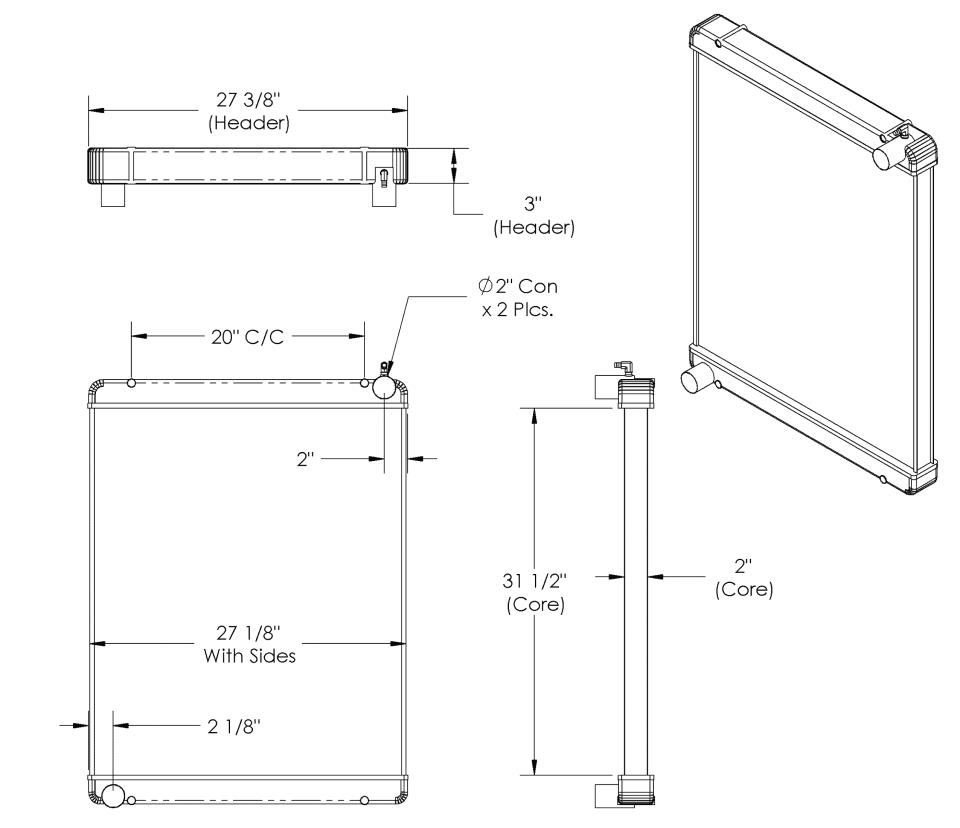

Radiator diagram with detailed measurements
Click the image above to view enlarged
TK 21859
3" x 27 3/8"
  • Available for Order
  • Manufacturer: Freightliner
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
PC 23036 Core 31 1/2 27 1/8 2 907 2" CON. — —
PC 49745 Core 35 15/16 27 1/8 1 7/8 907 2 " CONN. — —
