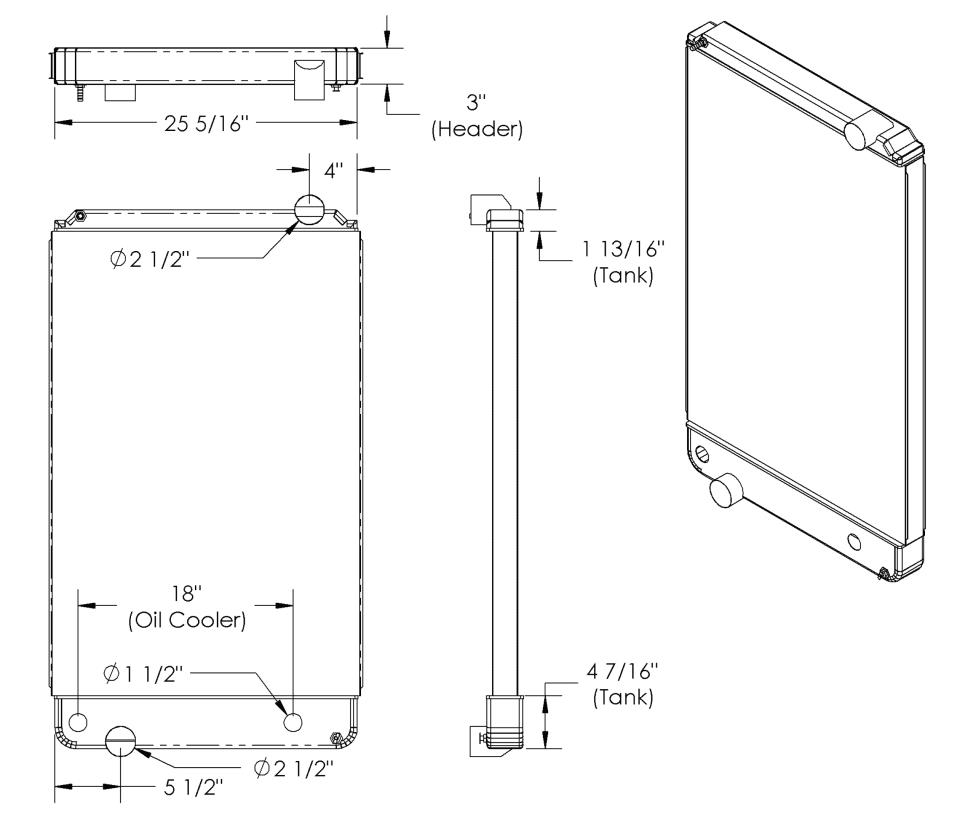

Technical diagram of oil cooler radiator design.
Click the image above to view enlarged
TK 22693
3" x 25 5/16"
  • Available for Order
  • Manufacturer: International / Navistar
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
TQ 22691 Core 38 1/8 26 1/4 2 1/2 — — — —
DHBR 22692 Core 38 1/8 25 1/16 2 11/16 — — — —
FELF 22690 Core 38 1/8 26 1/4 2 1/8 — — — —
