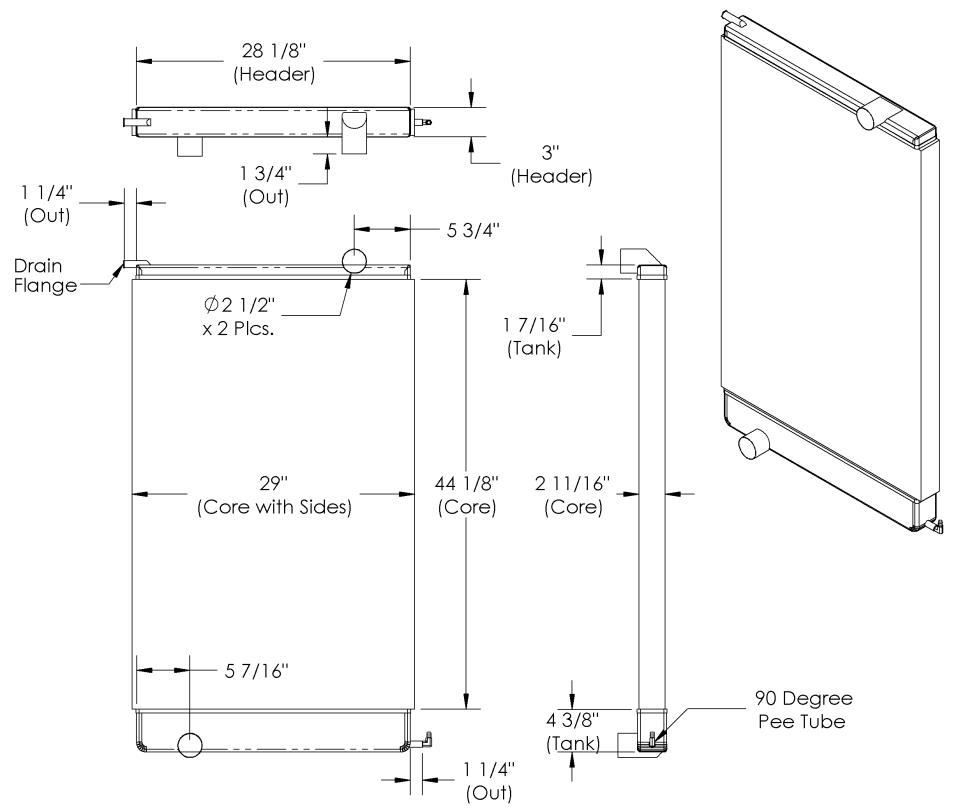

Technical drawing of car radiator dimensions.
Click the image above to view enlarged
TK 27565
3" x 28 1/8"
  • Available for Order
  • Manufacturer: International / Navistar
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
DH 27564 Core 44 1/8 29 2 11/16 — — — —
PC 33983 Core 44 1/8 29 2 1/2 — — — —
