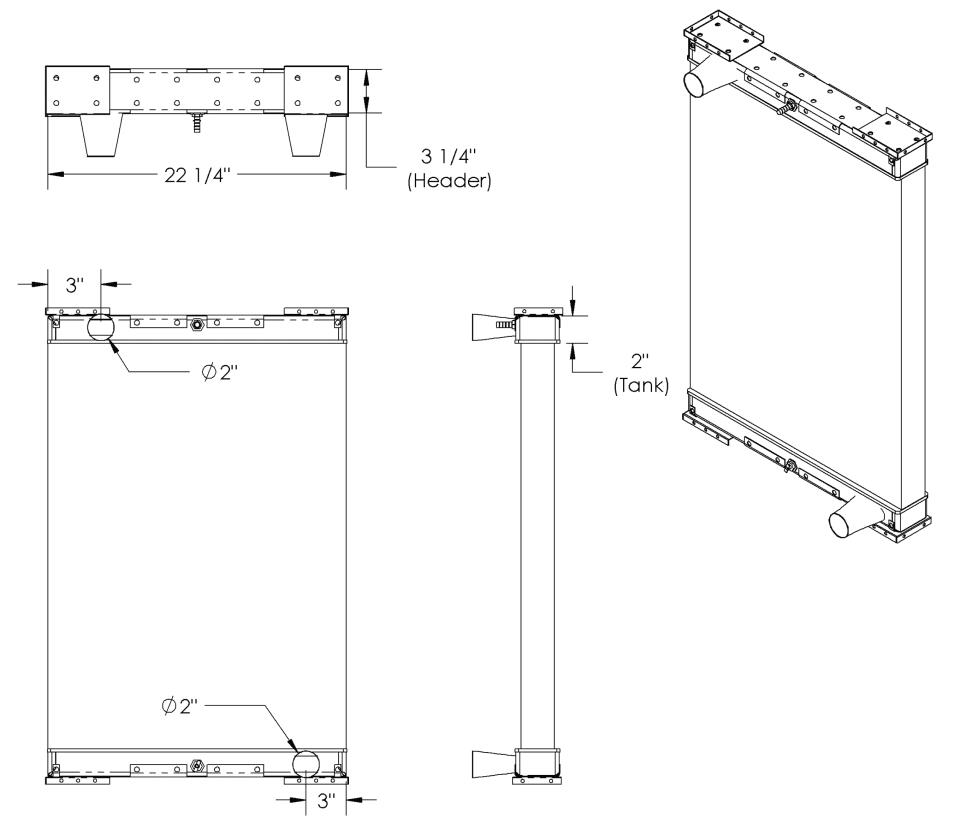

Technical radiator blueprint with measurements and specifications.
Click the image above to view enlarged
TK BT 058S
3 1/4" x 22 1/4"
  • Available for Order
  • Manufacturer: Mack
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
AT 1097 Core 30 1/4 22 1/4 2 3/8 101 2" CON. — —
PC 1097 Core 30 1/4 22 1/4 2 1/2 101 2" CON. — —
