Tanks
Pacific Radiator's Quality Tanks
Keep your projects on track with custom tank solutions
“You can trust that we are committed to a higher level of excellence from each individual in the organization. From the smallest to the biggest job from start to finish our customers come first.”
The difference in our tanks is dependability. With our in-house team of expert technicians, we design and manufacture custom solutions for a range of materials and applications. Your equipment specifications come first – we tailor our process to fit the job, deadline included. There’s no easier or more efficient way to get your tank replacement custom-crafted than with the experts at Pacific Radiator.
Choose your precision solution in:
- Brass
- Steel
Pacific Radiator Tanks
Our complete catalogue, at your fingertips.
Search Our Tank Inventory
Enter tank width (e.g., "22", "22 1/4") or model name
Showing 1-6 of 6 results
Click the image above to view enlarged

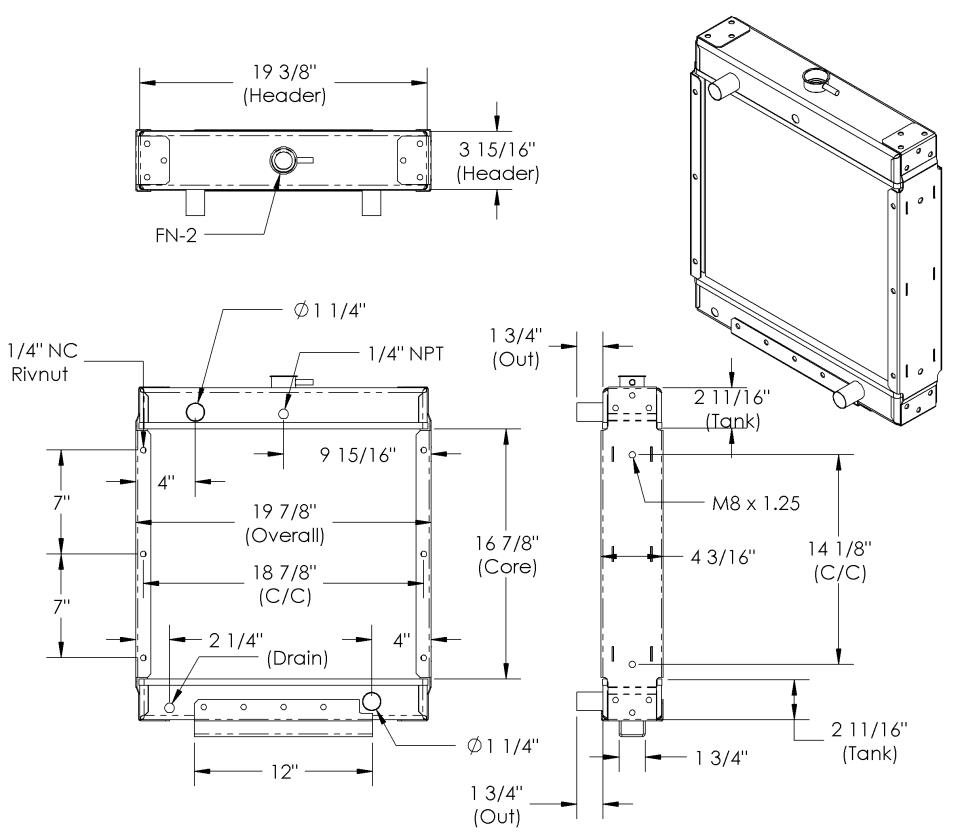

TK 52844
3 15/16" x 19 3/8"
Tank – 3 15/16″ x 19 3/8″
- Available for Order
- Manufacturer: Light Tower
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IN 52843 | Core | 16 7/8 | 18 3/8 | 2 11/16 | TK 52844 | 1 1/4" CON. | — | — |
Click the image above to view enlarged

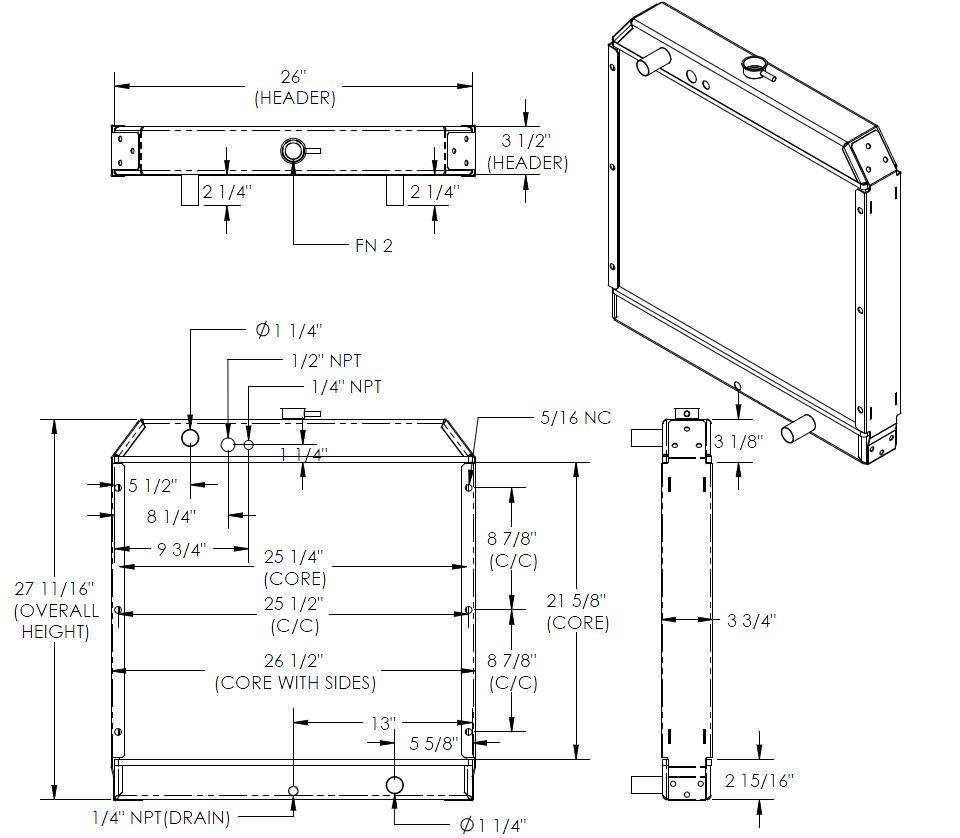

TK 47842
3 1/2" x 26"
Tank – 3 1/2″ x 26″
- Available for Order
- Manufacturer: Light Tower
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| TQLF 47841 | Core | 21 5/8 | 25 1/4 | 2 1/2 | TK 47842 | 1 1/4" OD | — | — |
Click the image above to view enlarged
TK 46700
2" x 15 9/16"
Top and bottom headers are different lengths
Tank – 2″ x 15 9/16″
- Available for Order
- Manufacturer: Light Tower
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| TQ LF 46701 | Core | 14 3/4 | 15 7/8 | 1 5/8 | TK 46700 | 1" CONN. | — | — |
Click the image above to view enlarged

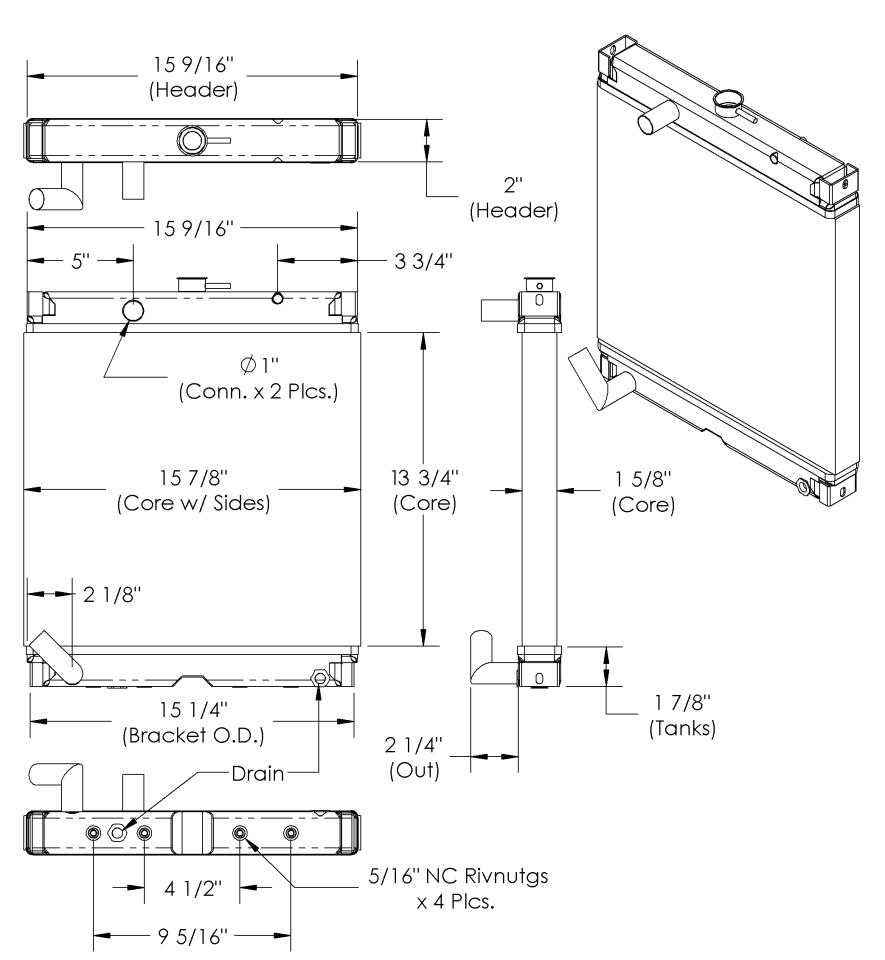

TK 46057
2" x 15 9/16"
Tank for Light Tower.
Tank – 2″ x 15 9/16″
- Available for Order
- Manufacturer: Light Tower
Click the image above to view enlarged

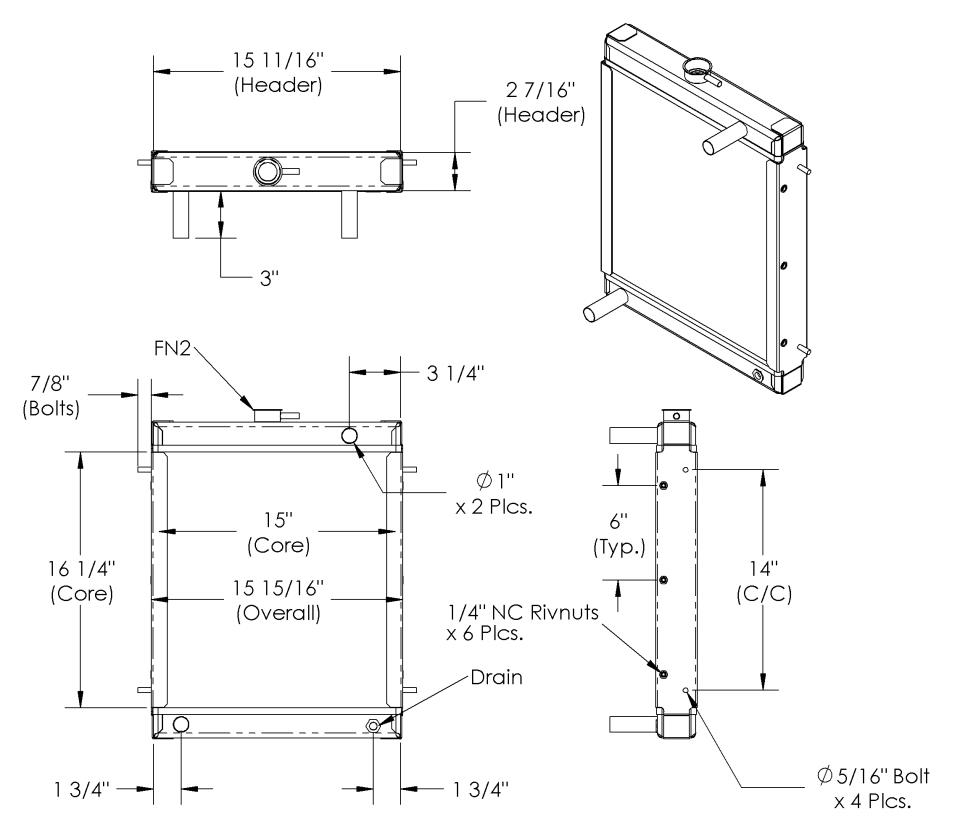

TK 31493
2 7/16" x 15 11/16"
Tank – 2 7/16″ x 15 11/16″
- Available for Order
- Manufacturer: Light Tower
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| PC 31492 | Core | 16 1/4 | 15 | 1 7/8 | TK 31493 | 1" CON. | — | — |
Click the image above to view enlarged
TK 22985
2" x 15 9/16"
Tank – 2″ x 15 9/16″
- Available for Order
- Manufacturer: Light Tower
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| TQLF 22984 | Core | 14 3/4 | 15 7/8 | 1 5/8 | TK SPEC 8 | 1" CON. | — | — |
