Tanks

Person designing machine model on computer screen.
Pacific Radiator's Quality Tanks

Keep your projects on track with custom tank solutions

“You can trust that we are committed to a higher level of excellence from each individual in the organization. From the smallest to the biggest job from start to finish our customers come first.”

The difference in our tanks is dependability. With our in-house team of expert technicians, we design and manufacture custom solutions for a range of materials and applications. Your equipment specifications come first – we tailor our process to fit the job, deadline included. There’s no easier or more efficient way to get your tank replacement custom-crafted than with the experts at Pacific Radiator.
Choose your precision solution in:

Pacific Radiator Tanks

Our complete catalogue, at your fingertips.

Search Our Tank Inventory

Enter tank width (e.g., "22", "22 1/4") or model name
Showing 1-7 of 15 results
Click the image above to view enlarged

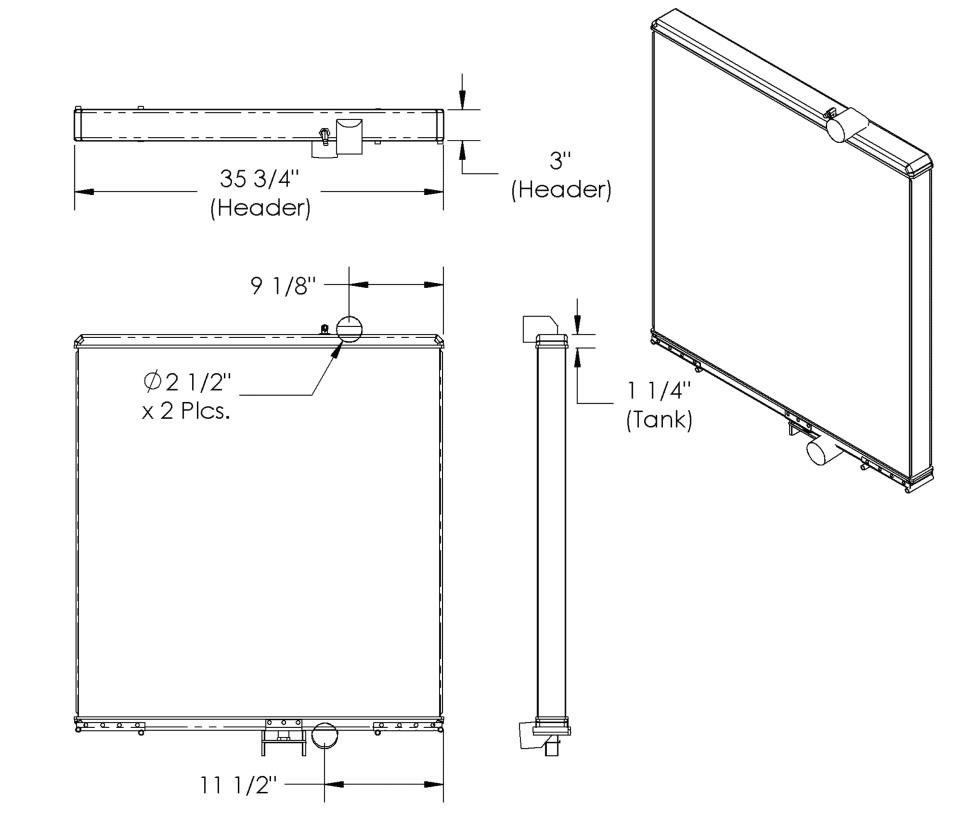

TK BT 035S
3" x 35 3/4"

Tank for Volvo / White radiators.

Tank – 3″ x 35 3/4″
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
LF 9087 Core 35 3/4 35 1/2 2 72 2 1/2" CON.
Click the image above to view enlarged
TK BT 011S
3 1/4" x 26 7/16"
Tank – 3 1/4″ x 26 7/16″
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
PC 1396 Core 35 3/8 26 1/2 2 1/2 42 2 1/4" CON.
IL 9084 LF Core 37 3/4 26 1/8 2 3/4 16 No Con.
LF 9084 Core 37 3/4 26 1/8 2 1/2 16 No Con.
Click the image above to view enlarged
TK BT 010S
3 1/4" x 26 7/16"
Tank – 3 1/4″ x 26 7/16″
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
LF 9088 Core 35 26 2 1/2 TK 27985
Click the image above to view enlarged

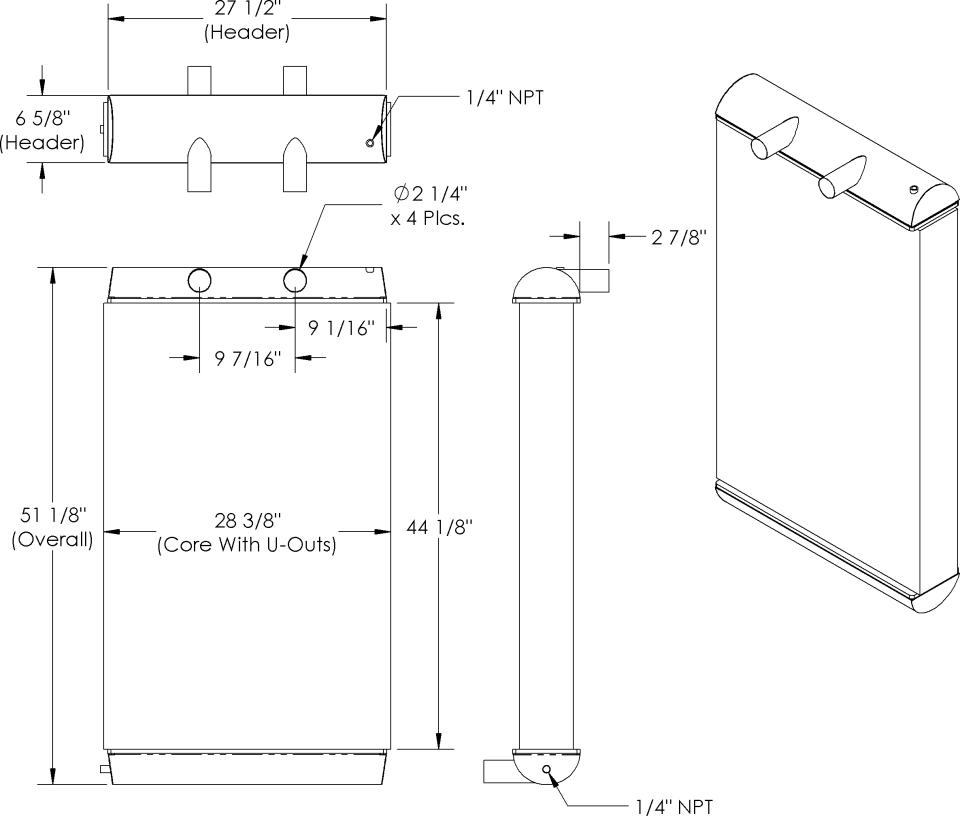

TK 65926
6 5/8" x 27 1/2"

1/2″ Deep Drop Header

3/8″ DSR Header

Tank – 6 5/8″ x 27 1/2″
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
IN 84814 Core 44 1/8 28 3/8 5 5/16 TK 65926 2 1/4" CONN.
Click the image above to view enlarged

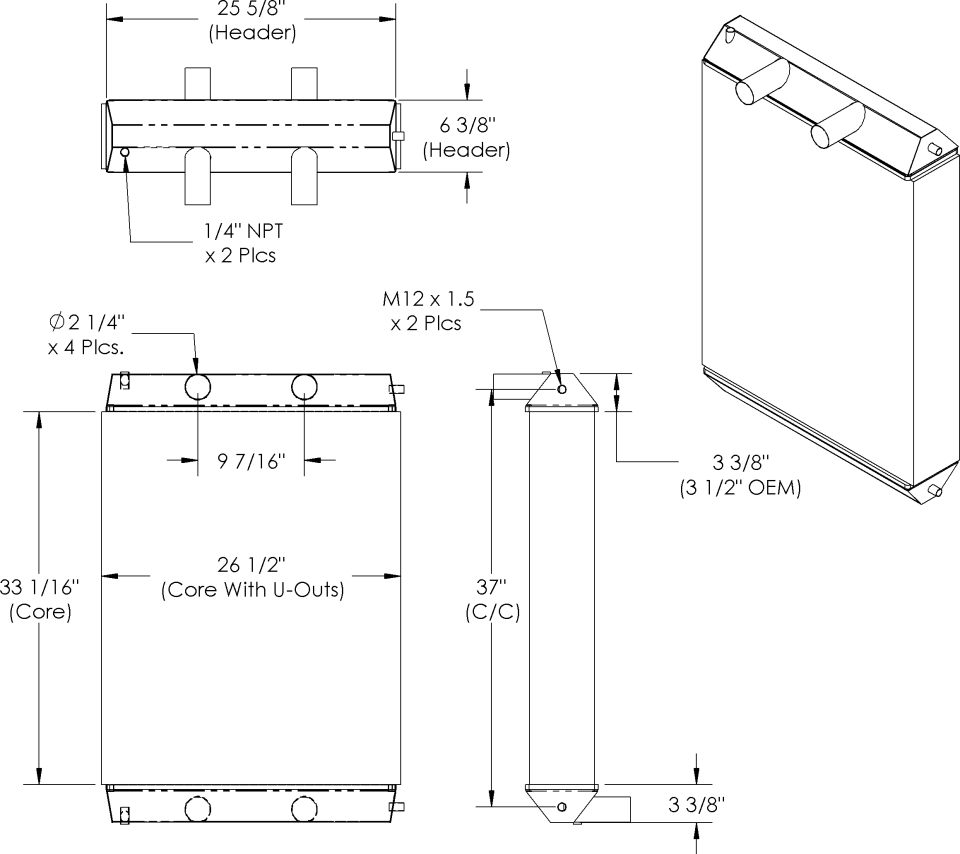

TK 43194
6 3/8" x 25 5/8"
Tank – 6 3/8″ x 25 5/8″
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
CF LF 48926 Core 33 1/16 26 1/2 5 3/8 TK 43194 2 1/4" CON.
ID LF 49713 Core 33 1/16 26 1/2 5 5/16 TK 43194 2 1/4" CON.
Click the image above to view enlarged

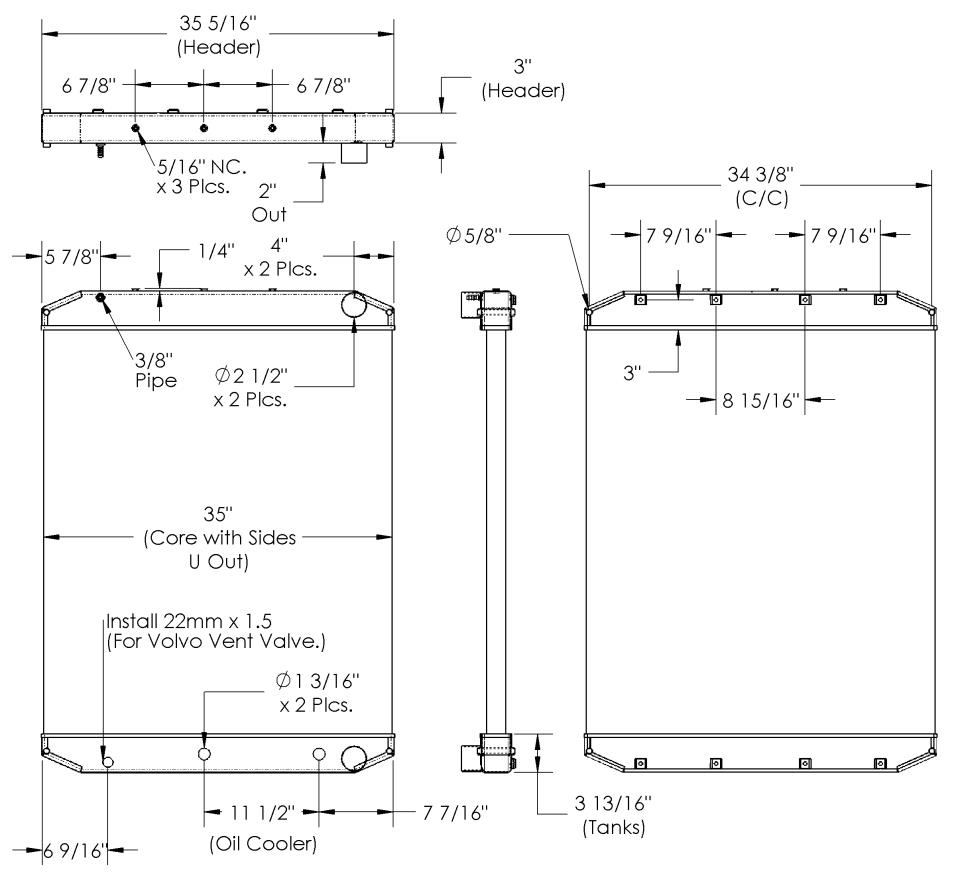

TK 36121
3" x 35 5/16"
Tank – 3″ x 35 5/16″
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
LF 36120 Core 40 9/16 35 1 7/8 TK 36121
Click the image above to view enlarged

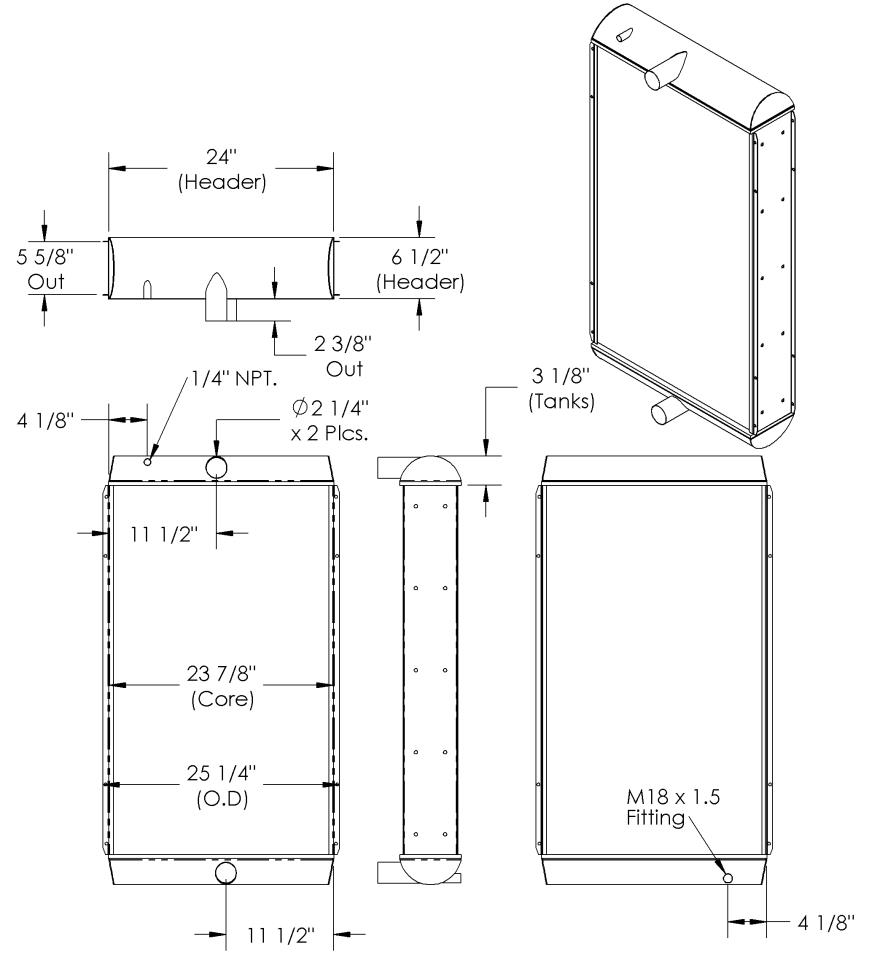

TK 32390
6 1/2" x 24"

.060 Brass tanks with steel sides

Tank – 6 1/2″ x 24″
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
IN 32388 Core 39 3/8 25 1/4 5 5/16 TK 32390 2 1/4" CON.

Manufacturers? We’ve got you covered.

Get powerful cooling package and radiator replacements for these premier manufacturers:
