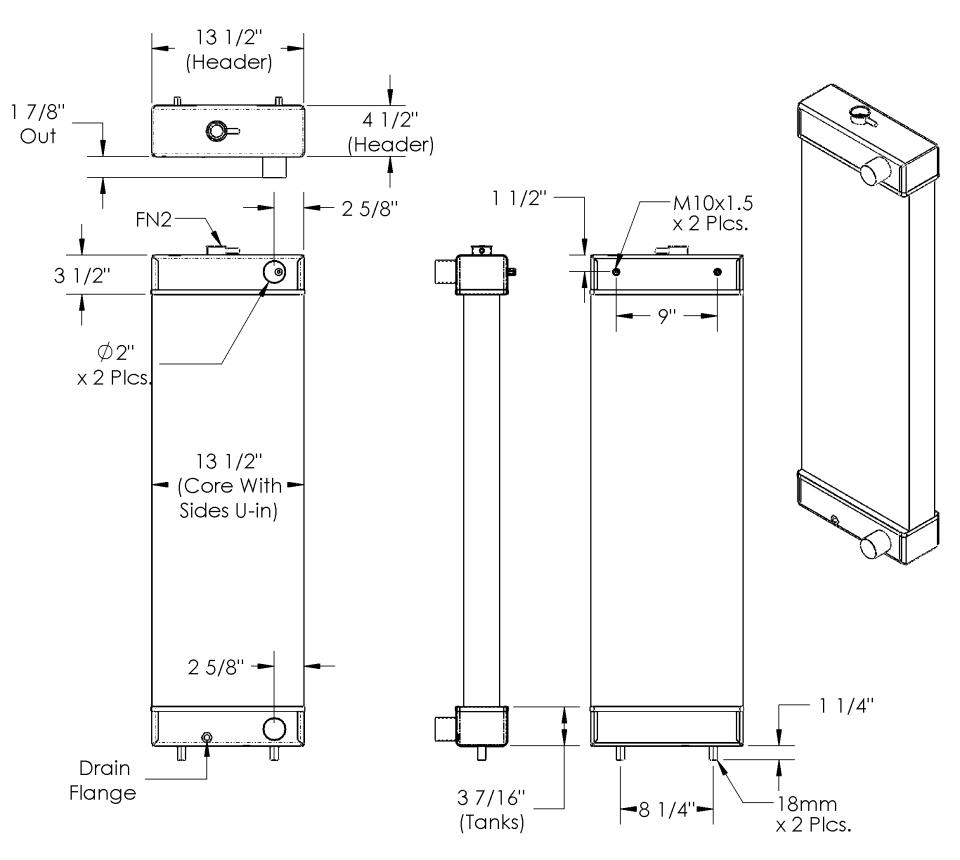

Technical drawing of heater exchanger with dimensions.
Click the image above to view enlarged
TK 41466
4 1/2" x 13 1/2"

***For version with M10 female thread inserts on bottom tank in place of pin mounts, please request a drawing for “TK 67111″***

  • Available for Order
  • Manufacturer: Komatsu
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
IH 50166 Core 27 9/16 13 1/2 3 5/8 TK 41466 2" CON. — —
IN 50367 Core 28 7/8 13 1/2 4 TK 41466 2" CON. — —
