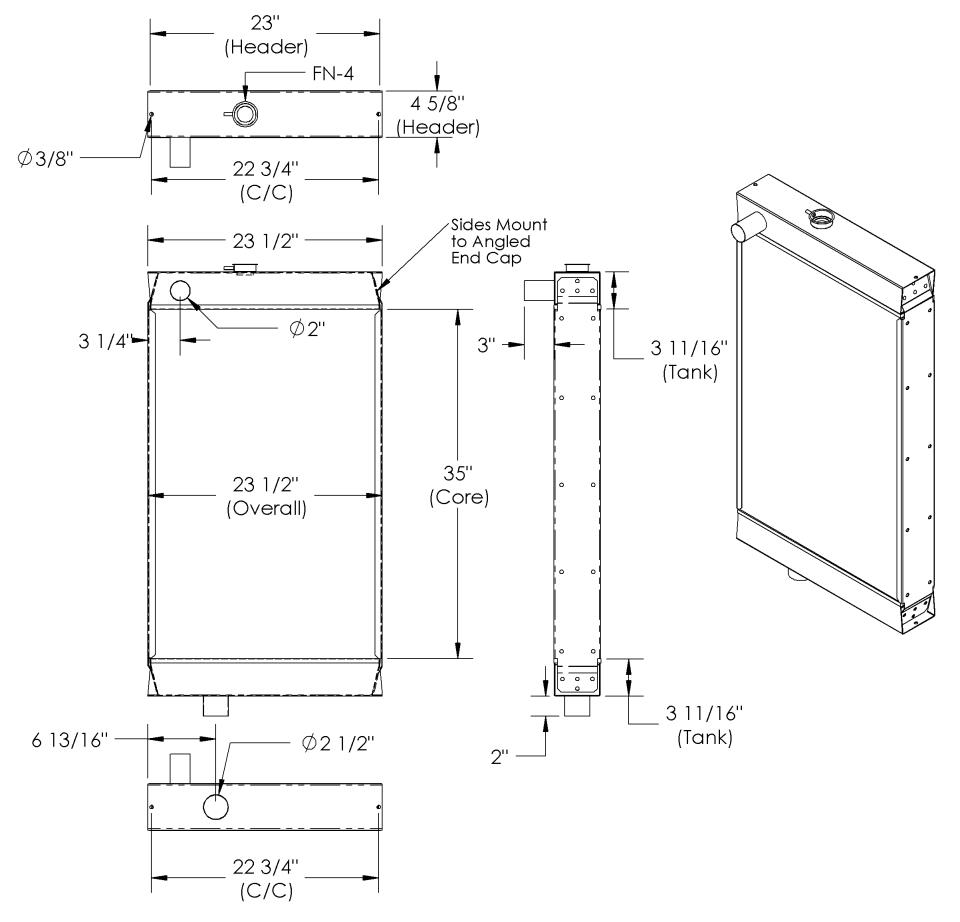

Radiator technical drawing with measurements.
Click the image above to view enlarged
TK 45788
4 5/8" x 23"

0.075″ Steel Tanks

  • Available for Order
  • Manufacturer: Caterpillar
Search Tanks
Print
Name Type Height Width Depth Top Tank # Top Tank Btm Tank # Btm Tank
DHLF 45787 Core 35 23 3/8 4 7/16 TK 45788 2" CON. — —
