Pacific Radiator's Quality Tanks
Keep your projects on track with custom tank solutions
“You can trust that we are committed to a higher level of excellence from each individual in the organization. From the smallest to the biggest job from start to finish our customers come first.”
The difference in our tanks is dependability. With our in-house team of expert technicians, we design and manufacture custom solutions for a range of materials and applications. Your equipment specifications come first – we tailor our process to fit the job, deadline included. There’s no easier or more efficient way to get your tank replacement custom-crafted than with the experts at Pacific Radiator.
Choose your precision solution in:
- Brass
- Steel
Pacific Radiator Tanks
Our complete catalogue, at your fingertips.
Search Our Tank Inventory
Enter tank width (e.g., "22", "22 1/4") or model name
Showing 1-7 of 32 results
Click the image above to view enlarged

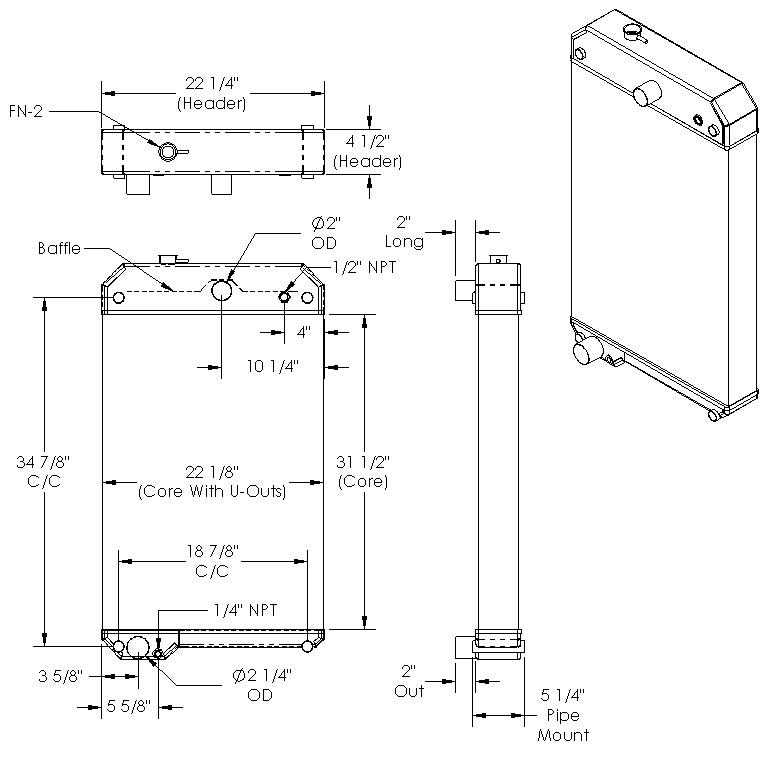

TK 94759
4 1/2" x 22 1/4"
1/2″ Deep Drop Seam Header
0.05″ Brass Tanks
Tank – 4 1/2″ x 22 1/4″
- Available for Order
- Manufacturer: Caterpillar
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IH 111066 | Core | 31 1/2 | 22 1/8 | 3 5/8 | — | TK 94759 Top | — | — |
Click the image above to view enlarged

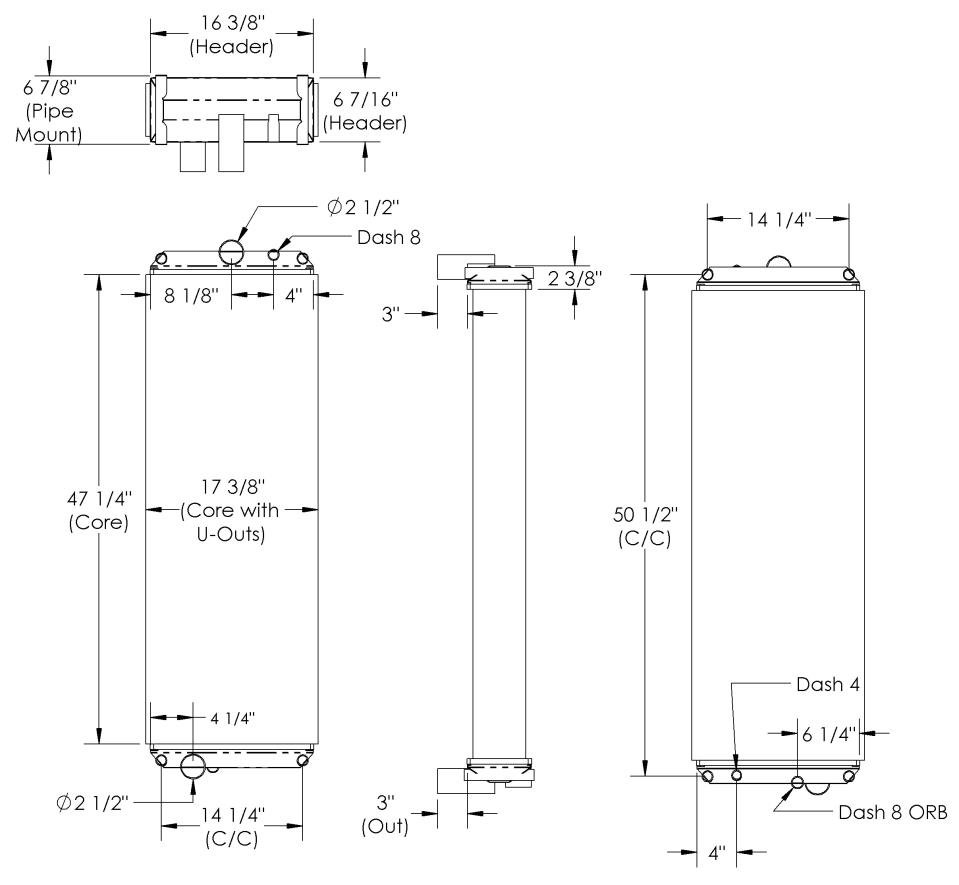

TK 89488
6 7/16" x 16 3/8"
1/2″ Deep Drop Seam
0.075″ Steel Tank , 3/8″ Header
335-4191-60
Tank – 6 7/16″ x 16 3/8″
- Available for Order
- Manufacturer: Caterpillar
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IH 102207 | Core | 47 1/4 | 17 3/8 | 5 5/16 | — | TK 89488 Top | — | — |
Click the image above to view enlarged

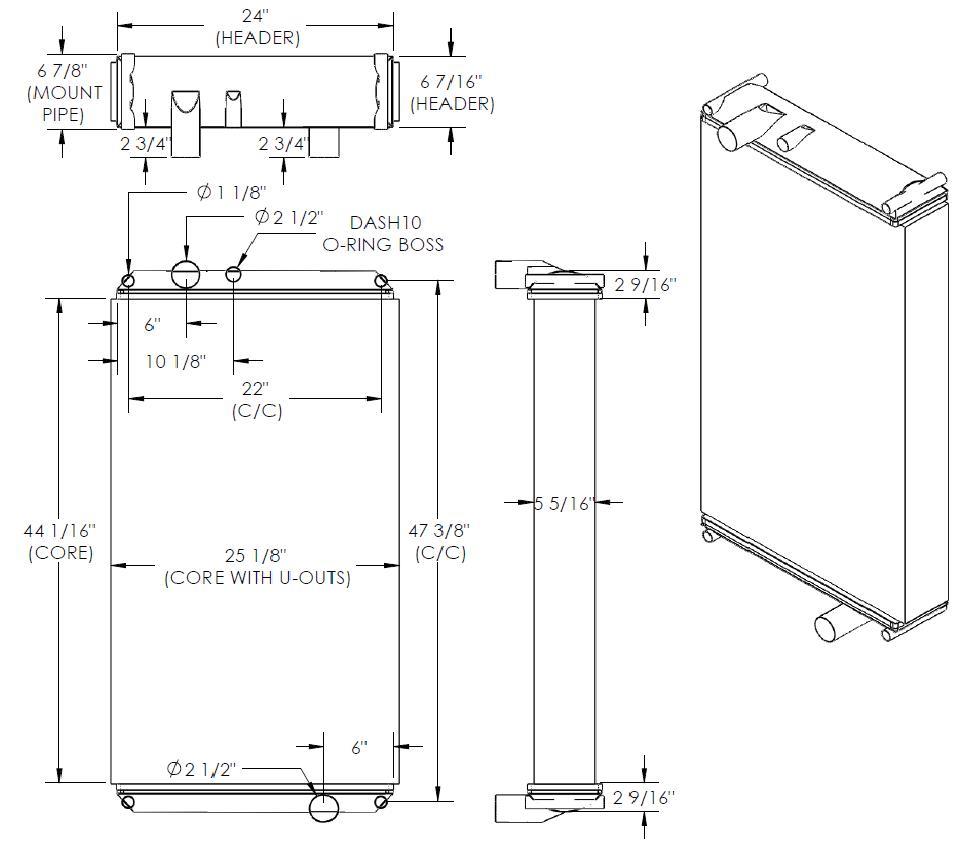

TK 86798
6 7/16" x 24"
1/2″ DEEP DROP SEAM, 3/8″ DSR HEADERS
0.06″ BRASS TANKS
Tank – 6 7/16″ x 24″
- Available for Order
- Manufacturer: Caterpillar
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IH 86797 | Core | 44 1/16 | 25 1/8 | 5 5/16 | — | TK 86798 TOP | — | — |
Click the image above to view enlarged

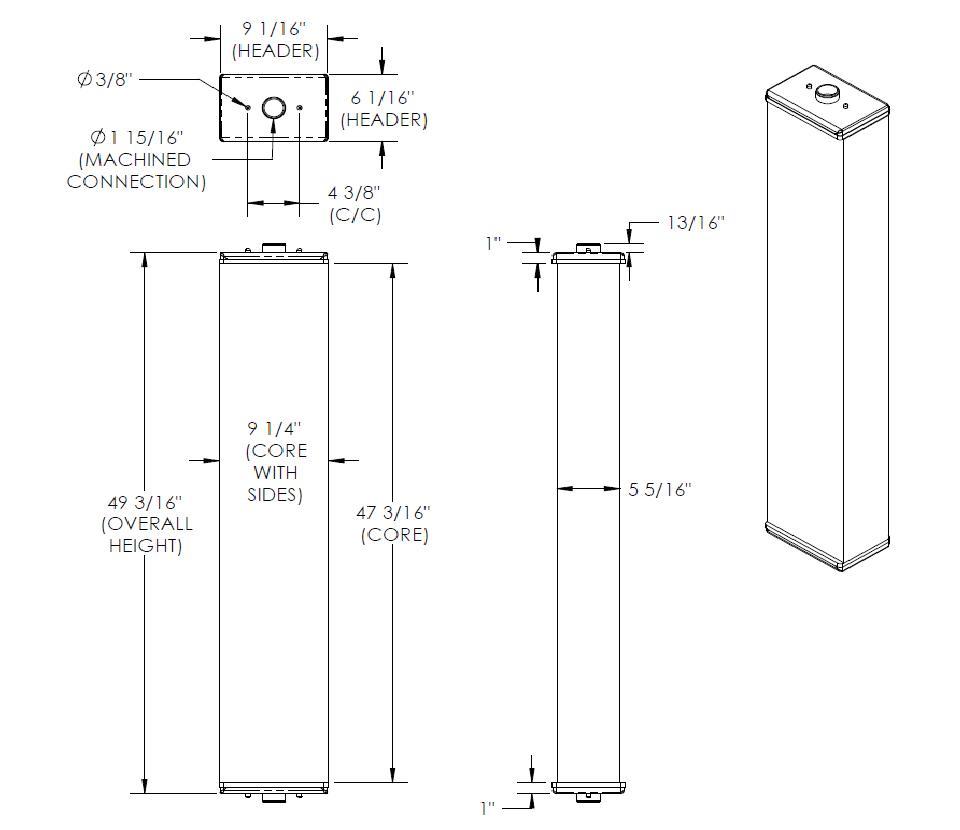

TK 86652
6 1/16" x 9 1/16"
1/2″ DEEP DROP SEAM HEADERS
.004 COPPER
Tank – 6 1/16″ x 9 1/16″
- Available for Order
- Manufacturer: Caterpillar
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| PC 1396 | Core | 47 3/16 | 9 1/4 | 5 5/16 | — | TK 86652 TANK | — | — |
Click the image above to view enlarged

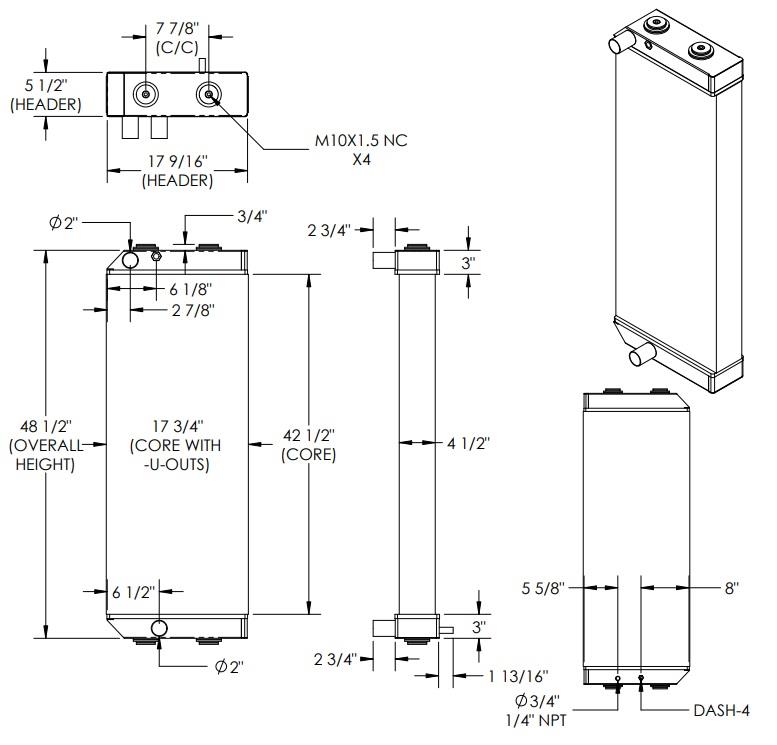

TK 83812
5 1/2" x 17 1/2"
1/2″ DEEP DROP SEAM HEADER
0.075 STEEL TANKS
3/8″ DSR
Tank – 5 1/2″ x 17 1/2″
- Available for Order
- Manufacturer: Caterpillar
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| AT 83811 | Core | 42 1/2 | 17 3/4 | 4 1/2 | — | TK 83812 TOP | — | — |
Click the image above to view enlarged

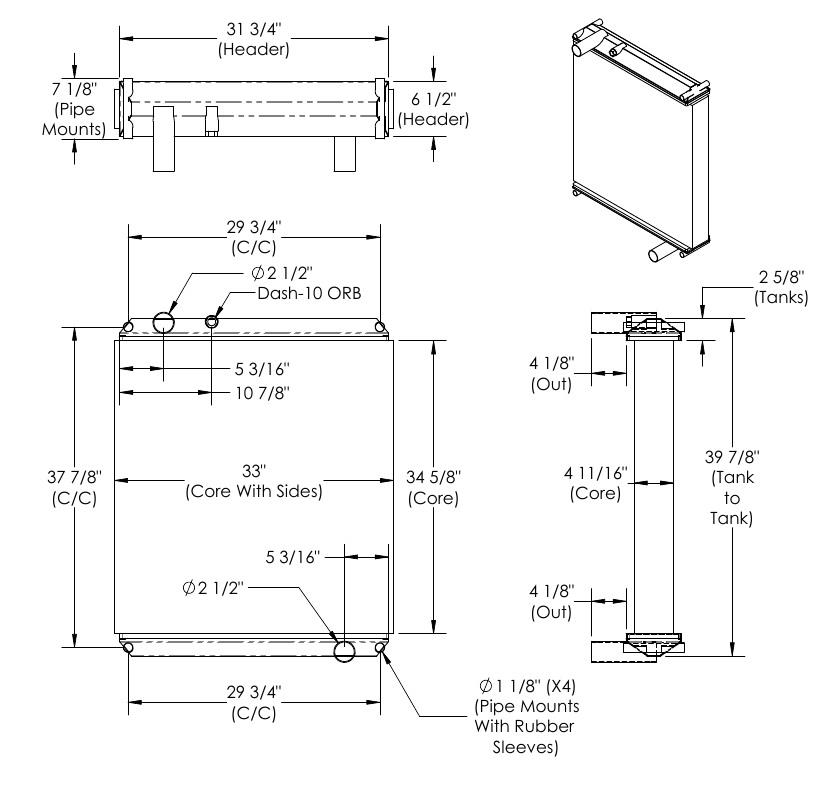

TK 84705
6 1/2" x 31 3/4"
1/2″ DEEP DROP SEAM, 3/8″ DSR HEADERS
0.075″ STEEL TANKS
Tank – 6 1/2″ x 31 3/4″
- Available for Order
- Manufacturer: Caterpillar
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IN 85118 | Core | 34 5/8 | 33 | 4 11/16 | — | — | — | — |
Click the image above to view enlarged

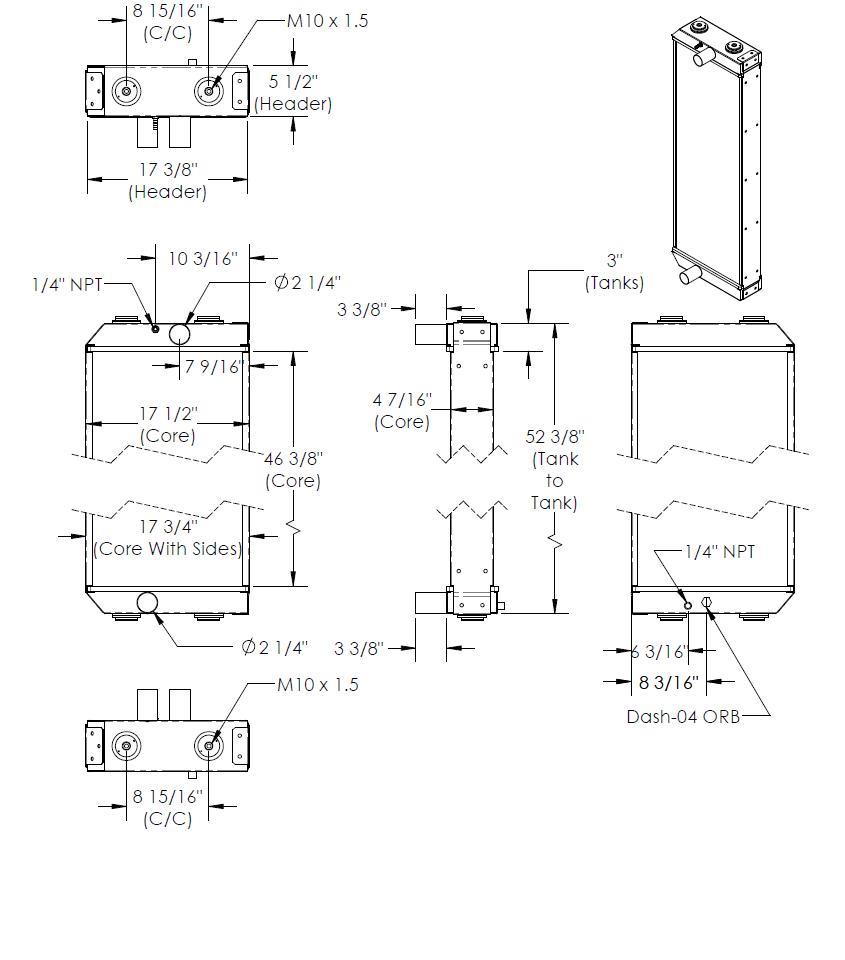

TK 73387
5 1/2" x 17 3/8"
1/2″ DEEP DROP SEAM, 3/8″ DSR HEADERS
0.075″ STEEL TANKS & SIDES
Tank – 5 1/2″ x 17 3/8″
- Available for Order
- Manufacturer: Caterpillar
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| PC 1396 | Core | 46 3/8 | 17 1/2 | 4 7/16 | — | TK 73387 TOP | — | — |
…
