Pacific Radiator's Quality Tanks
Keep your projects on track with custom tank solutions
“You can trust that we are committed to a higher level of excellence from each individual in the organization. From the smallest to the biggest job from start to finish our customers come first.”
The difference in our tanks is dependability. With our in-house team of expert technicians, we design and manufacture custom solutions for a range of materials and applications. Your equipment specifications come first – we tailor our process to fit the job, deadline included. There’s no easier or more efficient way to get your tank replacement custom-crafted than with the experts at Pacific Radiator.
Choose your precision solution in:
- Brass
- Steel
Pacific Radiator Tanks
Our complete catalogue, at your fingertips.
Search Our Tank Inventory
Enter tank width (e.g., "22", "22 1/4") or model name
Showing 1-7 of 56 results
Click the image above to view enlarged

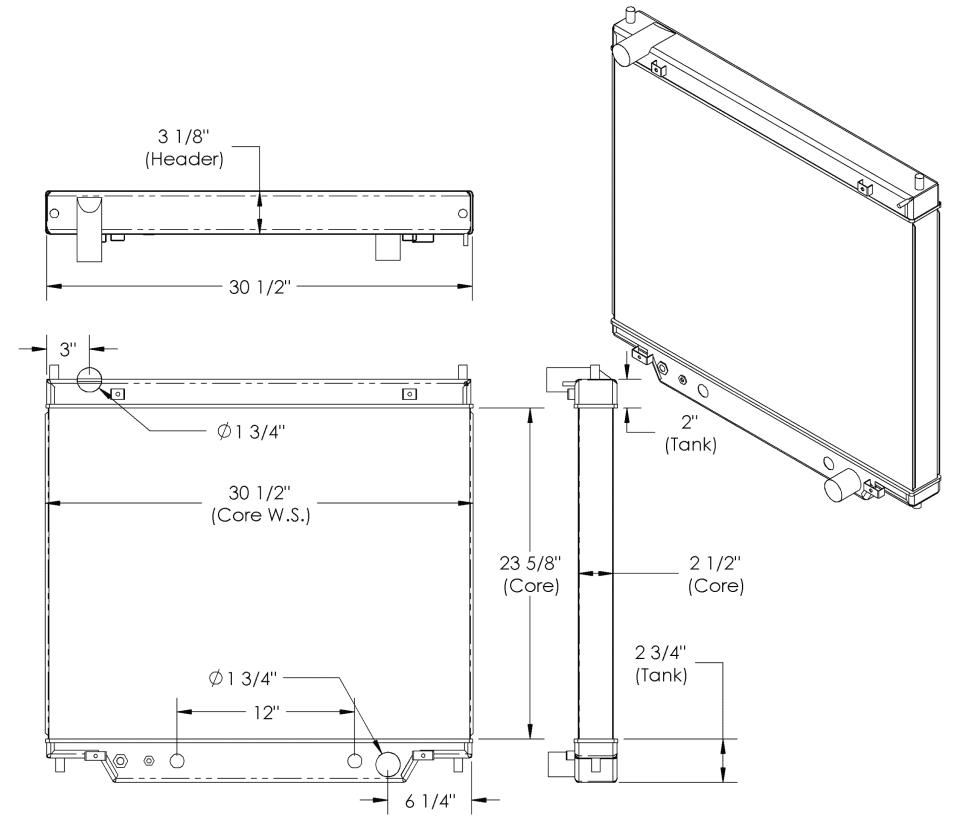

TK BT 34S
3 1/8" x 30 1/2"
Tank – 3 1/8″ x 30 1/2″
- Available for Order
- Manufacturer: Ford / Sterling
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| PC 4602A | Core | 23 5/8 | 30 1/2 | 2 1/2 | 34 | 1 3/4" CON. | — | — |
Click the image above to view enlarged
TK BT 085S
3" x 29 1/8"
Tank – 3″ x 29 1/8″
- Available for Order
- Manufacturer: Ford / Sterling
Click the image above to view enlarged

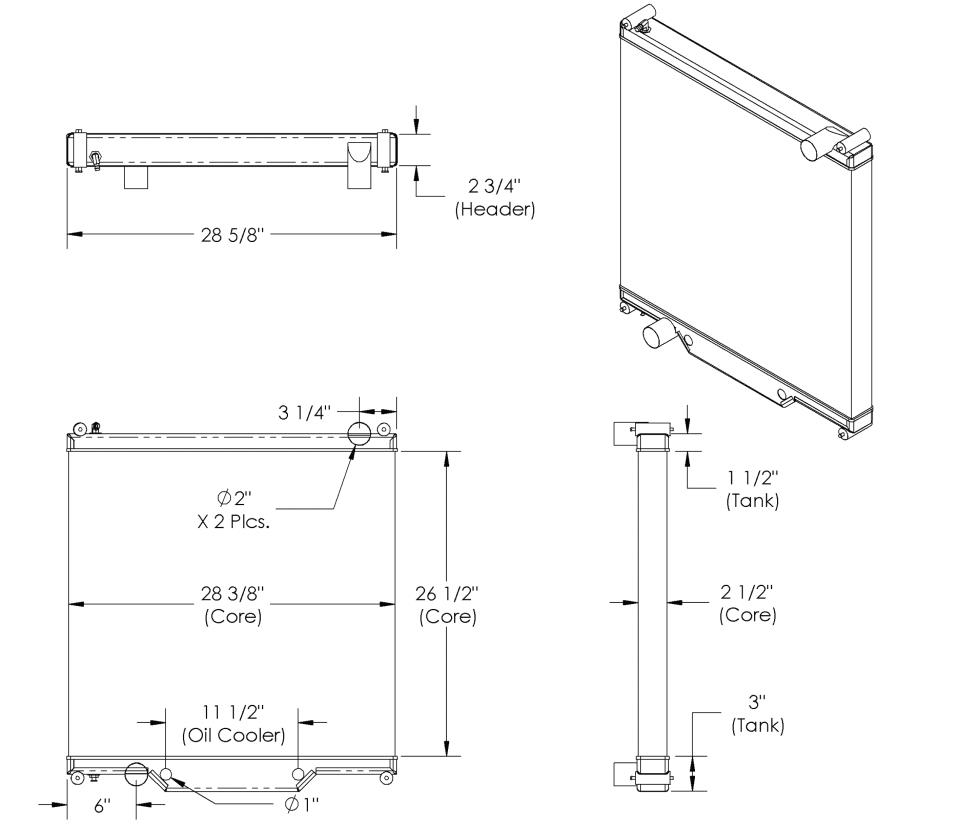

TK BT 091S
2 3/4" x 28 5/8"
Tank – 2 3/4″ x 28 5/8″
- Available for Order
- Manufacturer: Ford / Sterling
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| PC 23003 | Core | 26 1/2 | 28 3/8 | 2 1/2 | 51 | 2" CON. | — | — |
Click the image above to view enlarged

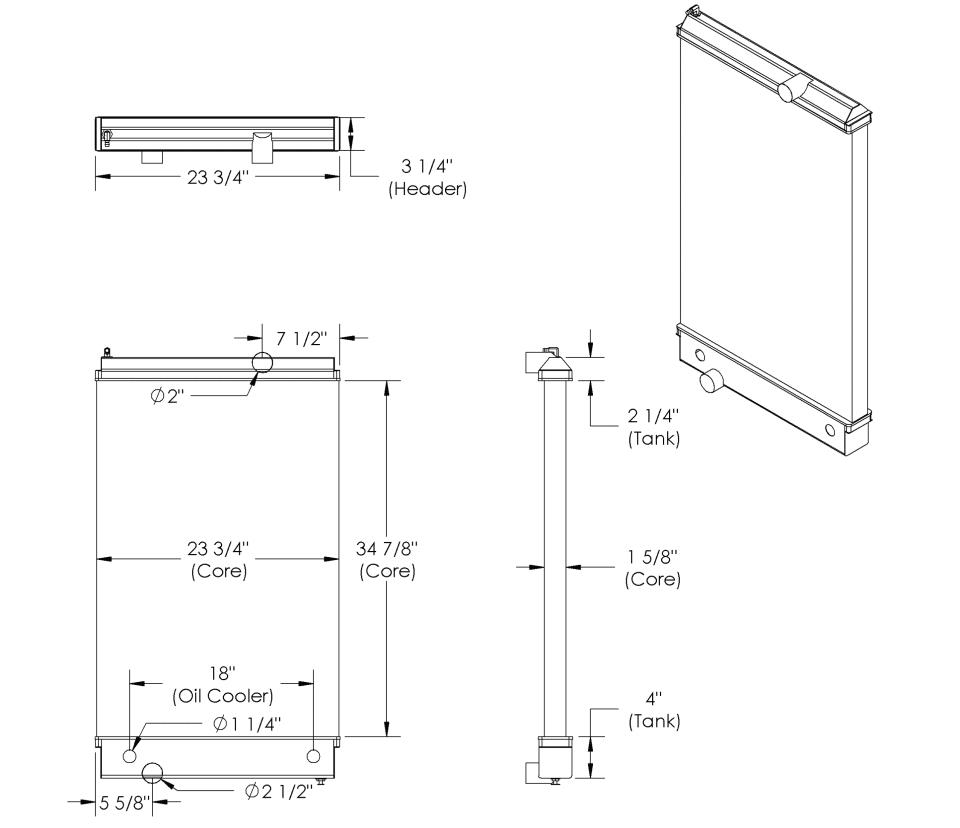

TK BT 069S
3 1/4" x 23 3/4"
Tank – 3 1/4″ x 23 3/4″
- Available for Order
- Manufacturer: Ford / Sterling
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| TQLF 9034 | Core | 34 7/8 | 23 3/4 | 1 5/8 | 90 | 2" CON. | — | — |
Click the image above to view enlarged

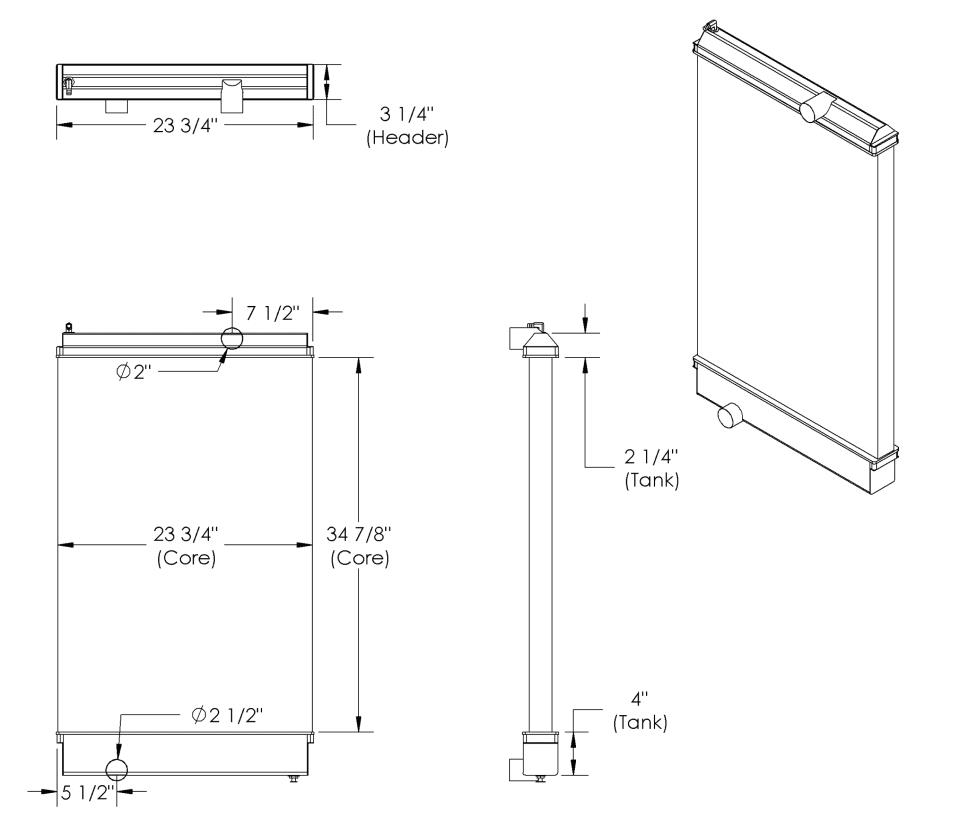

TK BT 070S
3 1/4" x 23 3/4"
Tank – 3 1/4″ x 23 3/4″
- Available for Order
- Manufacturer: Ford / Sterling
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| TQ LF 9034 | Core | 34 7/8 | 23 3/4 | 1 5/8 | 90 | 2" CON. | — | — |
Click the image above to view enlarged

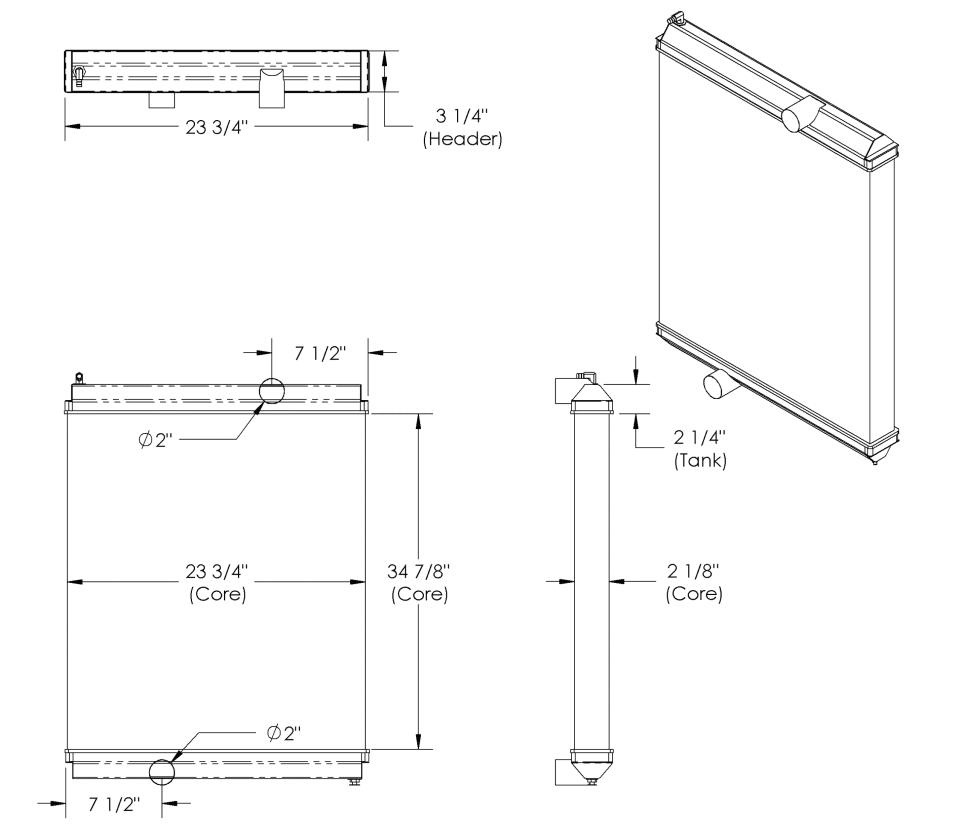

TK BT 056S
3 1/4" x 23 3/4"
Tank – 3 1/4″ x 23 3/4″
- Available for Order
- Manufacturer: Ford / Sterling
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| FE 9034 | Core | 34 7/8 | 23 3/4 | 2 1/8 | 90 | 2" CON. | — | — |
Click the image above to view enlarged

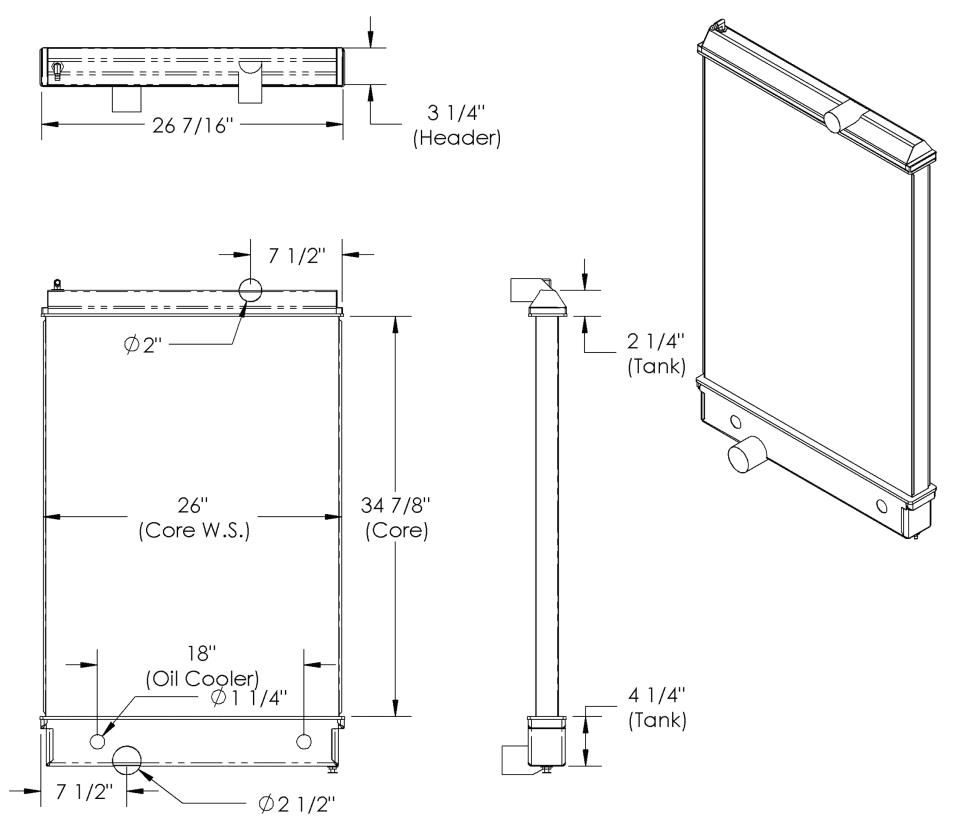

TK BT 062S
3 1/4" x 26 7/16"
Tank – 3 1/4″ x 26 7/16″
- Available for Order
- Manufacturer: Ford / Sterling
…
Manufacturers? We’ve got you covered.
Get powerful cooling package and radiator replacements for these premier manufacturers:
