Tanks
Pacific Radiator's Quality Tanks
Keep your projects on track with custom tank solutions
“You can trust that we are committed to a higher level of excellence from each individual in the organization. From the smallest to the biggest job from start to finish our customers come first.”
The difference in our tanks is dependability. With our in-house team of expert technicians, we design and manufacture custom solutions for a range of materials and applications. Your equipment specifications come first – we tailor our process to fit the job, deadline included. There’s no easier or more efficient way to get your tank replacement custom-crafted than with the experts at Pacific Radiator.
Choose your precision solution in:
- Brass
- Steel
Pacific Radiator Tanks
Our complete catalogue, at your fingertips.
Search Our Tank Inventory
Enter tank width (e.g., "22", "22 1/4") or model name
Showing 1-7 of 12 results
Click the image above to view enlarged

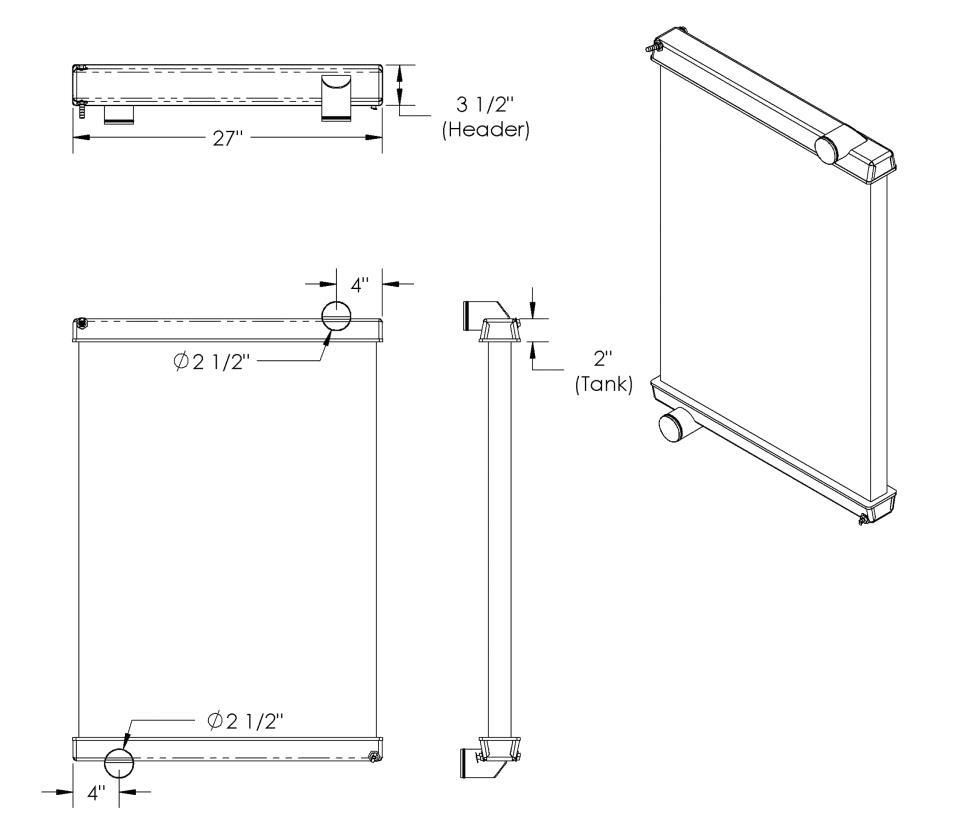

TK BT 025S
3 1/2" x 27"
Tank – 3 1/2″ x 27″
- Available for Order
- Manufacturer: Peterbilt
Click the image above to view enlarged

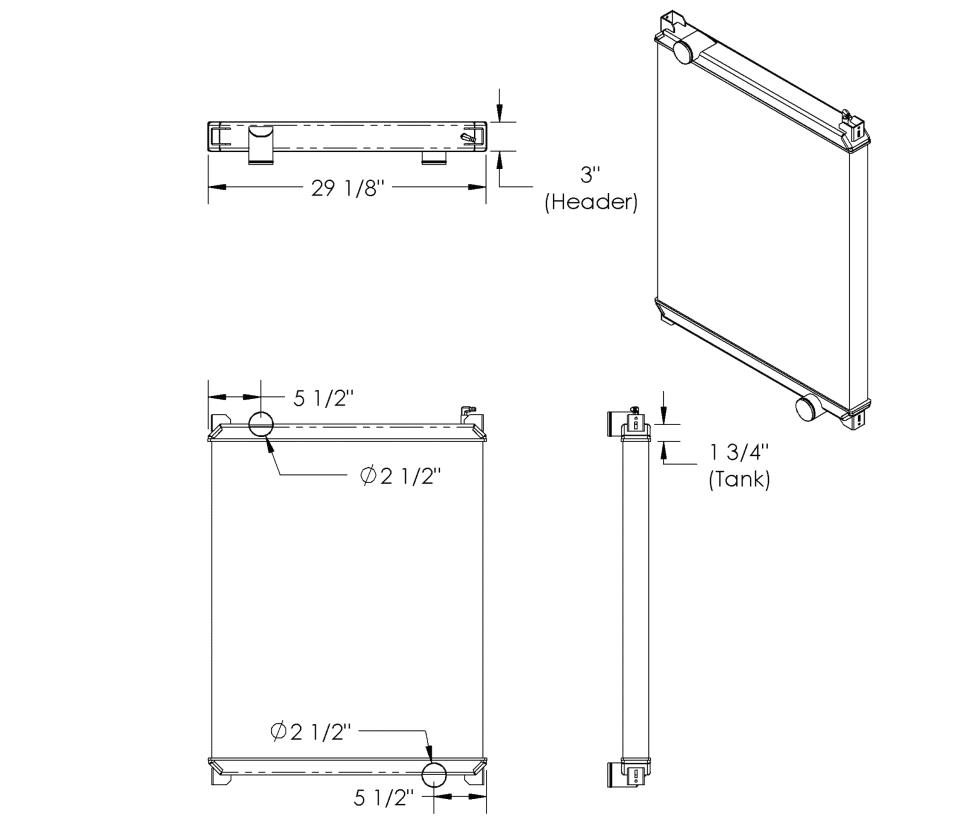

TK BT 003S
3" x 29 1/8"
Tank – 3″ x 29 1/8″
- Available for Order
- Manufacturer: Peterbilt
Click the image above to view enlarged

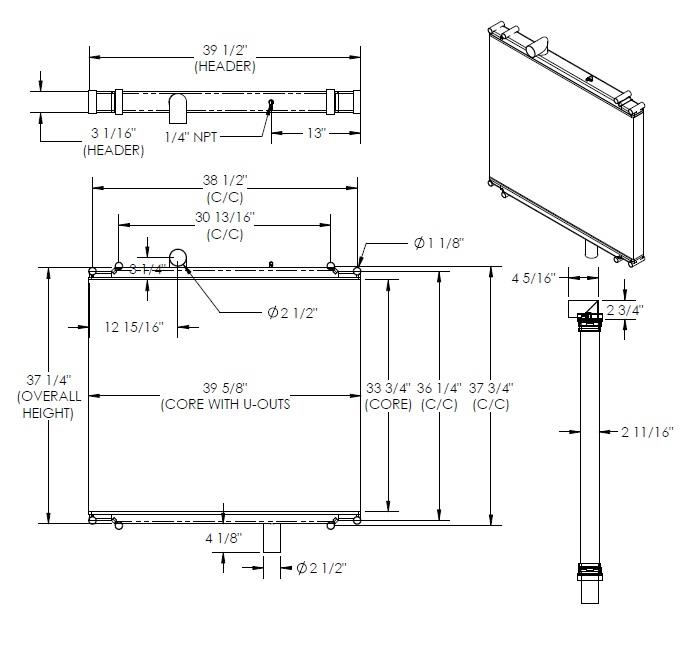

TK 90157
3 1/16" x 39 1/2"
1/2″ DEEP DROP SEAM HEADER.
Tank – 3 1/16″ x 39 1/2″
- Available for Order
- Manufacturer: Peterbilt
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| IHLF 90150 | Core | 33 3/4 | 39 5/8 | 2 11/16 | — | TK 90157 TOP | — | — |
Click the image above to view enlarged

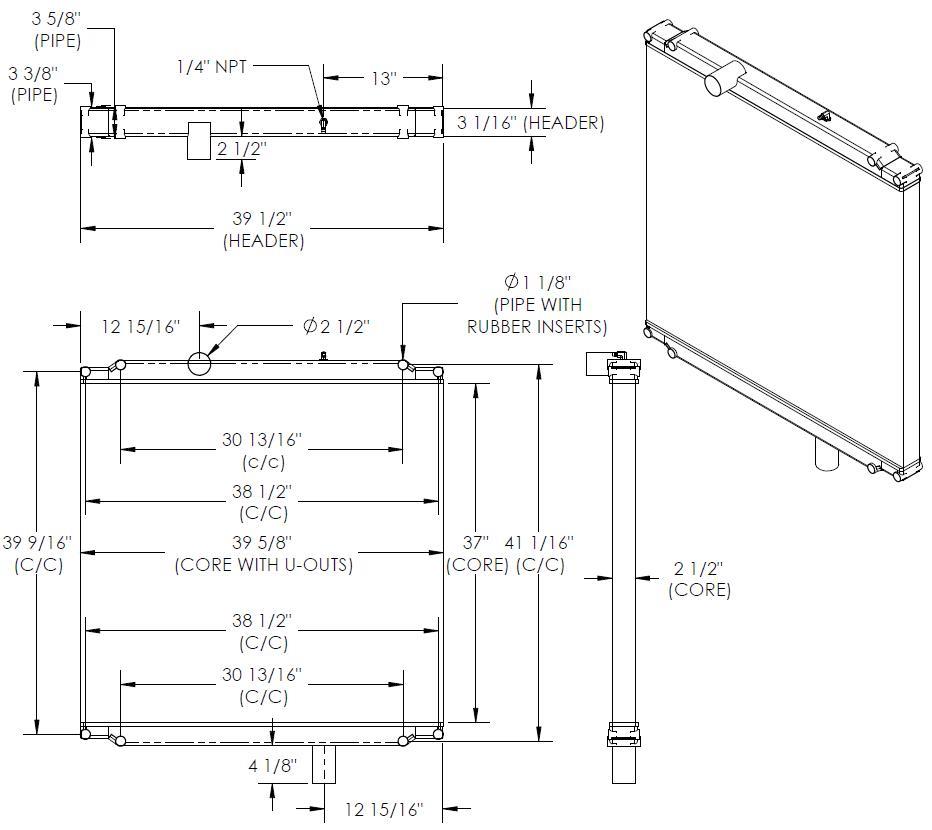

TK 77287
3 1/16" x 39 1/2"
**1/2″ DEEP DROP SEAM HEADERS**
Tank – 3 1/16″ x 39 1/2″
- Available for Order
- Manufacturer: Peterbilt
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| FE LF 23273 | Core | 42 7/8 | 39 5/8 | 2 1/8 | TK 77287 | 2-1/2" CON. | — | — |
| FE LF 36702 | Core | 37 | 39 5/8 | 2 1/8 | TK 77287 | 2-1/2" CON. | — | — |
| FE LF 51943 | Core | 30 1/2 | 39 5/8 | 2 1/8 | TK 77287 | 2 1/2" CONN. | — | — |
| IN LF 21163 | Core | 37 | 39 5/8 | 2 1/8 | TK 77287 | 2-1/2" CON. | — | — |
| FE LF 21069 | Core | 33 3/4 | 39 5/8 | 2 1/8 | TK 77287 | 2-1/2" CON. | — | — |
Click the image above to view enlarged

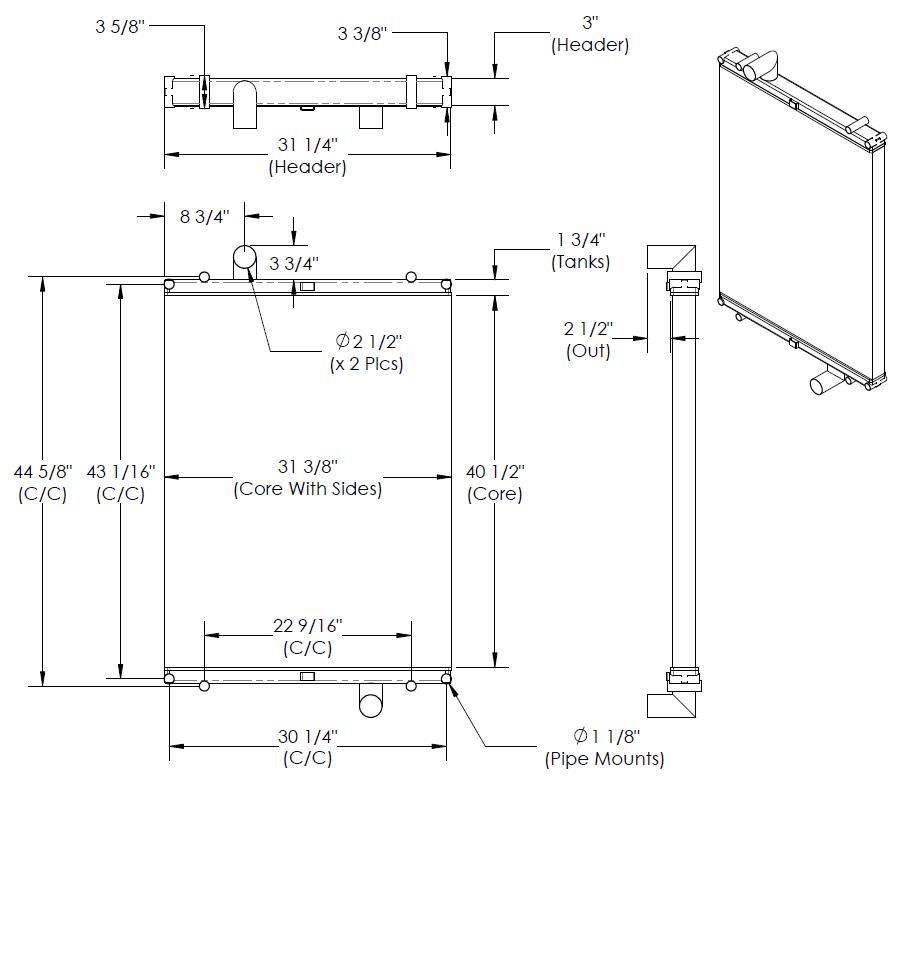

TK 43972
3" x 31 1/4"
Please Confirm if Top Tank Has a 90 degrees Pee Tube.
Tank – 3″ x 31 1/4″
- Available for Order
- Manufacturer: Peterbilt
Click the image above to view enlarged

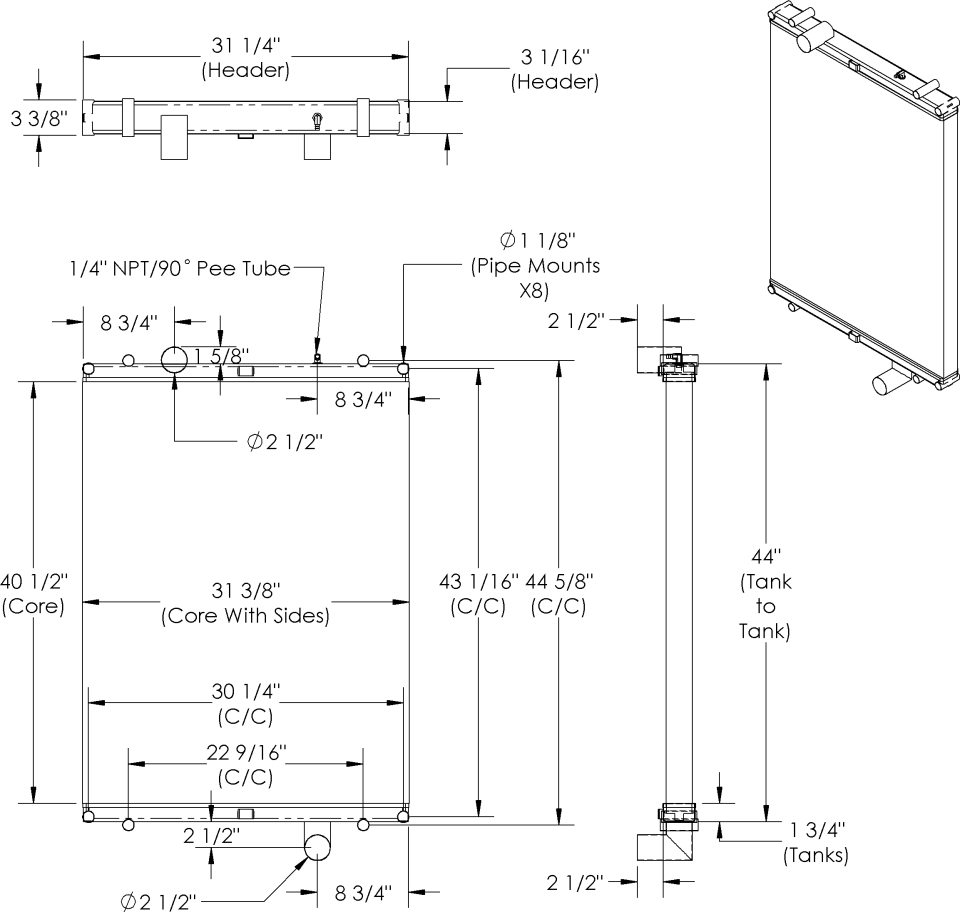

TK 32465
3 1/16" x 31 1/4"
1/2″ Deep Drop Seam Header
Tank – 3 1/16″ x 31 1/4″
- Available for Order
- Manufacturer: Peterbilt
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| PC 43325 | Core | 40 1/2 | 31 3/8 | 2 1/2 | — | TK 43972 | — | — |
Click the image above to view enlarged

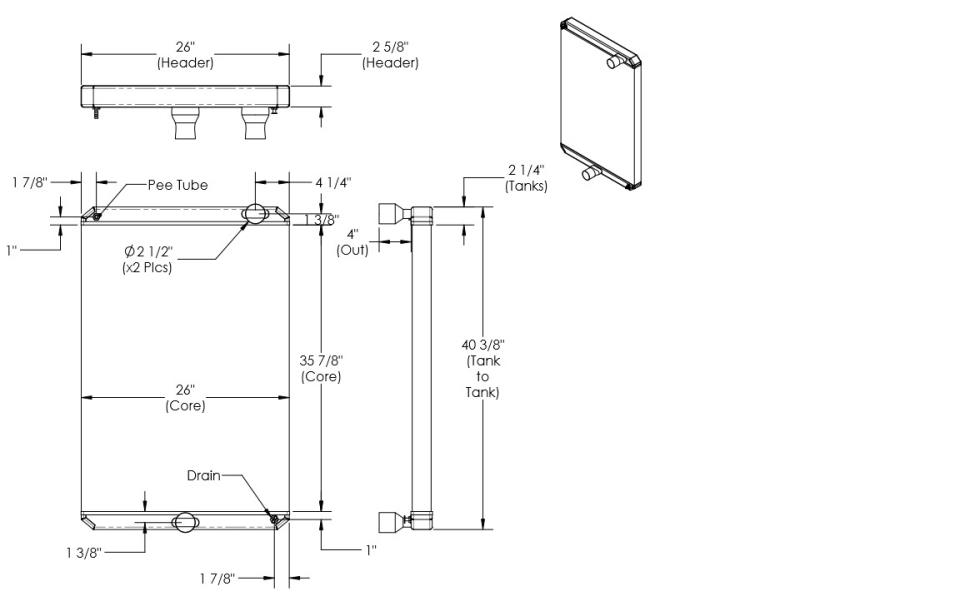

TK 24638
2 5/8" x 26"
Tank – 2 5/8″ x 26″
- Available for Order
- Manufacturer: Peterbilt
| Name | Type | Height | Width | Depth | Top Tank # | Top Tank | Btm Tank # | Btm Tank |
|---|---|---|---|---|---|---|---|---|
| FELF 8999 | Core | 35 7/8 | 26 | 2 1/8 | — | TK 24638 TOP | — | — |
